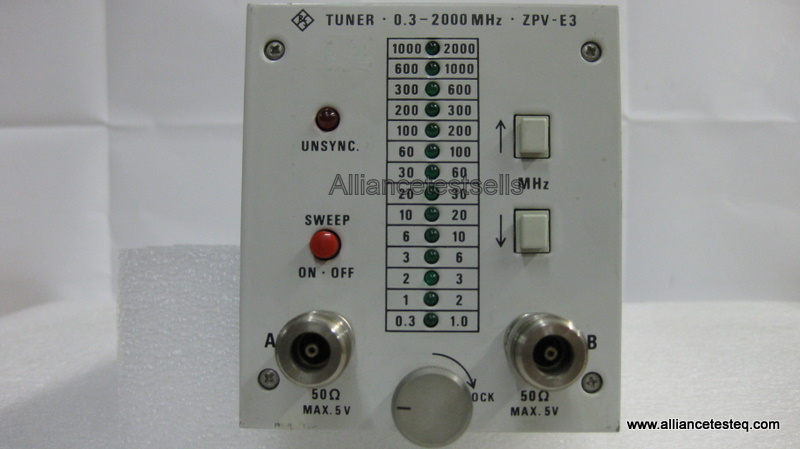

Rohde & Schwarz ZPV-E3
Tuner
Description
This Tuner allows vector measurements, two port and group delay measurements in 50ohms coaxial systems over a wide frequency and amplitude range. The frequency range is 0.3 to 2000MHz, usable to 2.5GHz. It has dual inputs with an impedance of 50ohms. Channel A has a sensitivity of 1200 microvolts. Channel B has a sensitivity of 5 microvolts. The tuner is used with the ZPV Vector Analyzer.
Key Points
Amplitude and phase
Y and Z parameters
S parameters
Group delay
Reflection coefficient
Impedance
Specifications
Impedance: 50ohms
Frequency range: 0.3 to 2000MHz
Channel A sensitivity: 1200 microvolts
Channel B sensivity: 5 microvolts
