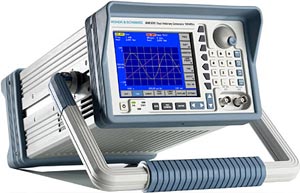

Rohde & Schwarz AM300
Arbitrary Waveform Generator
Description
This Generator is a dual channel Arbitrary/Function Waveform Generator that offers high functionality and spectral purity at a favorable price.
With its superior characteristics, the instrument reproduces digitally generated signals almost distortion free, even at high output levels and frequencies.
This unit thus meets requirements of a reference source for a number of tasks.
The two channels of the instrument are precisely phase coupled and thus allow the generation of analog I/Q signals.
Key Points
2 Channels with precise phase relation between the signals
Sine, triangle, ramp, exponential, square, noise and pulse waveforms
AM, FM, Phase, FSK, PSK modulation
Burst, Gate and Sweep function
USB interface
Specifications
Sample Rate: 100MSa/s
Vertical resolution: 14 Bit
Memory: 256K
Frequency Limit:
35MHz for Sine signals
50MHz for square signals
