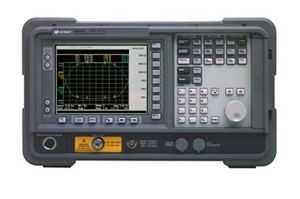

Agilent / HP / Keysight N8975A
N8975A Noise Figure Analyzer 10 MHz to 26.5 GHz
Description
The Agilent N8975A is a high performance noise figure analyzer designed to make fast, accurate and repeatable noise figure measurement.
With the N8975A ease of use features, you can set up complex measurements simply and easily giving you repeatable and reliable results you can trust.
The N8975A offers simultaneous noise figure and gain measurements with the ability to view, print and save the data/display in multiple formats.
The N8975A also has the ability to characterize amplifiers and frequency translating devices, including LO control over dedicated 2nd GPIB.
The N8975A offers increased measurement accuracy and faster measurement speed over previous Agilent noise figure meters, as well as six user selectable measurement bandwidths.
Key Points
Frequency range 10 MHz to 26.5 GHz in a one box solution
APC 3.5 (m) connector as standard
SNS series noise source compatibility: N4000A, N4001A, N4002A
Specifications
Frequency:
Frequency range:10 MHz to 26.5 GHz
Measurement bandwidth (nominal):4 MHz, 2 MHz, 1 MHz, 400 kHz, 200 kHz, 100 kHz
Frequency reference:
Aging:+/-< 2 ppm4/year
Temperature stability:+/-< 6 ppm
Settability:+/-< 0.5 ppm
Noise figure and gain:
noise figure:
10 MHz to < 500 MHz: < 4.9 dB + (0.0025 * freq in MHz)
500 MHz to < 2.3 GHz: < 7.4 dB + (0.00135 * freq in MHz)
2.3 GHz to 3.0 GHz: 4.9 dB + (0.0015 * freq in MHz)
> 3.0 GHz to 13.2 GHz: < 12.0 dB
> 13.2 GHz to 26.5 GHz: < 16.0 dB
RF input:
Connector:APC 3.5 (m), 50 OHM nominal (ESD sensitive)
Maximum operating input power:-10 dBm
Maximum protected input level:±20 Vdc; +15 dBm peak (or average) at RF
Measurement:
Sweep:
Number of points: 2 to 401, or fixed frequency
Measurement speed (nominal):
8 averages:
( 10 MHz to 3.0 GHz): < 50 ms/measurement
( 3.0 GHz to 26.5 GHz): < 70 ms/measurement
64 averages:
( 10 MHz to 3.0 GHz):< 42 ms/measurement
( 3.0 GHz to 26.5 GHz):< 50 ms/measurement
General specifications:
Weight (typical, without options):17.5 kg (38.61 lbs.)
Power requirements:
On (line 1): 90 to 132 V rms, 47 to 440 Hz; 195 to 250 V rms, 47 to 66 Hz; Power consumption< 300 W
Standby (line 0): < 5 W
Dimensions:
Without handle: 222mm(H) x 410mm(D) x 375mm(W)
With handle (max): 222mm(H) x 515mm(D) x 409mm(W)
Temperature range:
Operating: 0° C to +55° C
Storage: -40° C to +70° C
