Agilent / HP / Keysight N6762A

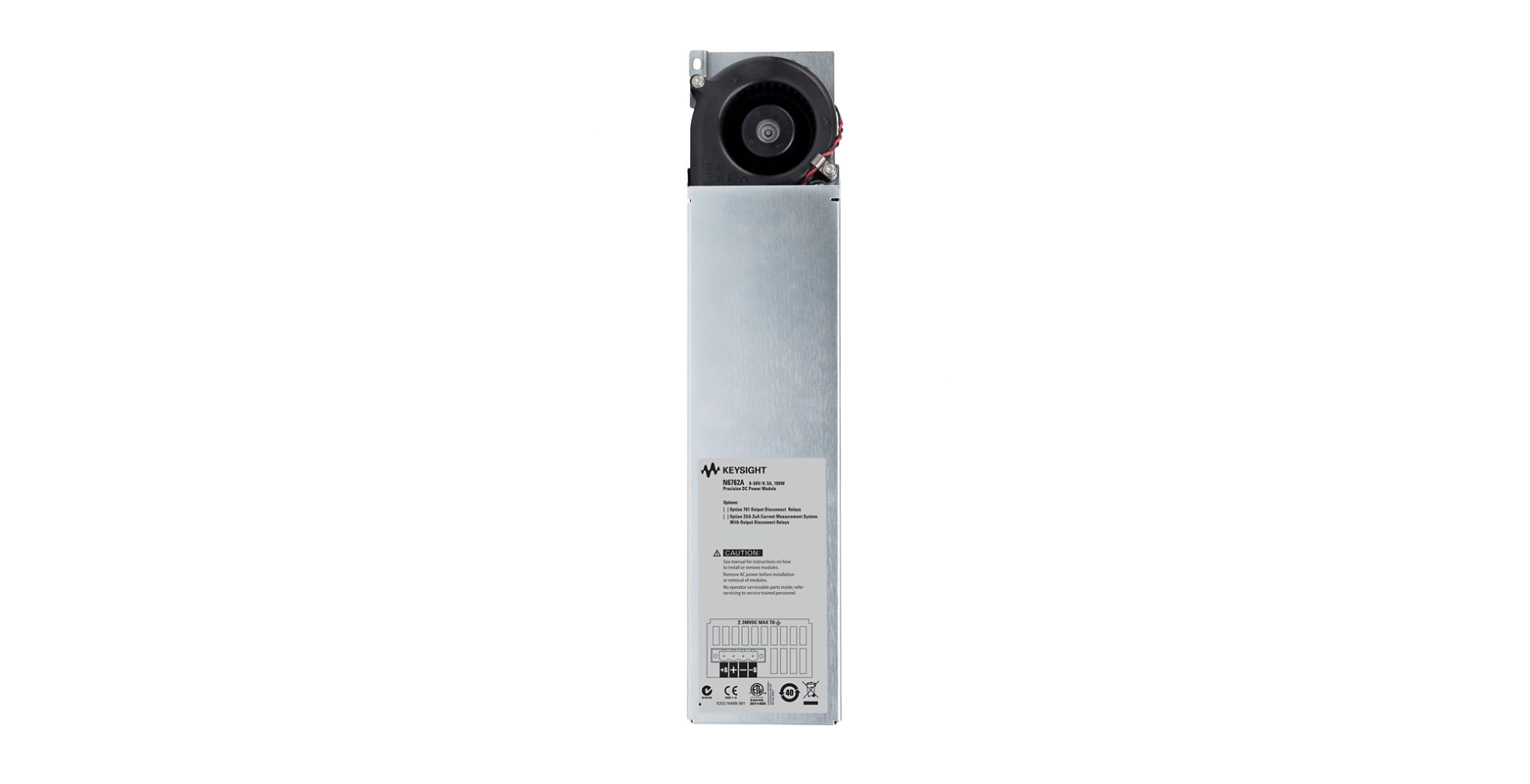

N6762A Precision DC Power Module, 50V, 3A, 100W

Please help us customize your browsing experience, by selecting one the below.

Description

The Agilent 100W, N6762A is a precision DC power module that provides precise control and measurements in the milliampere and microampere region with the ability to simultaneously digitize voltage and current, and capture those measurements in an oscilloscope-like data buffer when used in the N6700 Low-Profile mainframe or data log measurements when used in the N6705A DC Power Analyzer mainframe. For leakage current measurements on handset power amplifiers and other semiconductor devices, or for sleep-mode current measurement of battery powered devices, this module can be ordered with Option 2UA. Option 2UA adds a 200 µA full-scale current measurement range suitable for measurements down to 1 µA.

Key Points

Output Ratings

Programming Accuracy

Ripple & Noise

Load Effect

Specifications

Output Ratings

Voltage: 50 V
Current (derated 1% per °C above 40°C): 3 A
Power: 100 W

Programming Accuracy (at 23°C ±5°C after 30 minute warm-up. Applies from min. to max. program)

Voltage high range: 0.016% + 6 mV
Voltage low range (= 5.5 V): 0.016% + 1.5 mV
Current high range: 0.04% + 200 µA
Current low range (= 100 mA, @ 0 - 7 V): 0.04% + 15 µA

Ripple & Noise from 20 Hz to 20 MHz

CV peak-to-peak: 4.5 mV
CV rms: 350 µV
(PARD) CC rms: 2 mA

Current Measurement Accuracy (at 23°C ±5°C):

Current high range (= 3 A): 0.04% + 160 µA
Current low range (= 100 mA, @ 0 - 7 V): 0.03% + 15 µA
Current low range (= 100 mA, @ 0 - 50 V): 0.03% + 55 µA
Option 2UA microamp range (= 200 uA): 0.5% + 100 nA
