Agilent / HP / Keysight N6732B

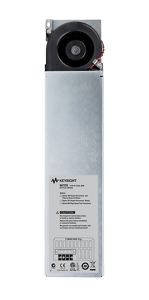

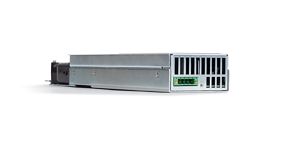

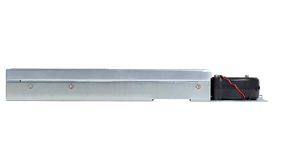

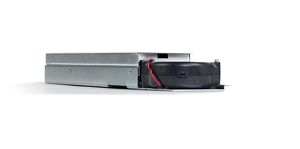

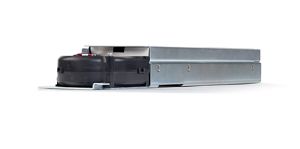

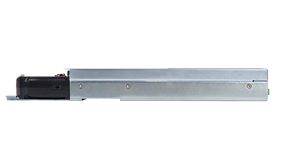

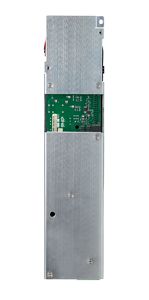

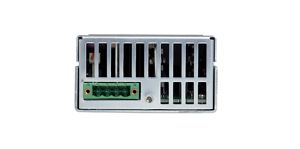

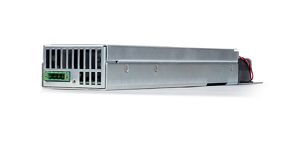

N6732B DC Power Module, 8 V, 6.25 A, 50 W
Description
Agilent high performance DC power supplies offer speed and accuracy for test optimization. The single low-profile modular power system, 50-300 W, GPIB, LAN, USB, LXI Class C N6700B series provides small size up to 4 outputs in 1U of rack space; 20 DC power modules, basic, performance and precision models; as well as fast output programming with active down programming. The Agilent 50W, N6732B is a basic DC power module that provides programmable voltage and current, measurement and protection features at a very economical price, making these modules suitable to power the DUT or to provide power for ATE system resources such as fixture control.
Key Points
Ideal for ATE systems in R&D, Design Validation, and Manufacturing
Small size
Flexible, modular system: Can mix and match power levels and performance levels to optimize investment
Performance modules for critical test requirements
Value modules for basic DC power requirements
Fast command processing times to improve throughput
Connect via GPIB, LAN, or USB
Fully compliant to LXI Class C specification
Specifications
Output Ratings
Voltage: 8 V
Current (derated 1% per °C above 40°C): 6.25 A / 12.5 A
Power: 50 W / 100 W
Programming Accuracy (at 23°C ±5°C after 30 minute warm-up. Applies from min. to max. program)
Voltage: 0.1% + 19 mV
Current: 0.15% + 20 mA
Ripple & Noise from 20 Hz to 20 MHz
CV peak-to-peak: 12 mV
CV rms: 2 mV
(PARD) CC rms: 4 mA
Load Effect (Regulation) (for any output load change, with a maximum load-lead drop of 1 V per lead)
Voltage: 6 mV
Current: 2 mA
