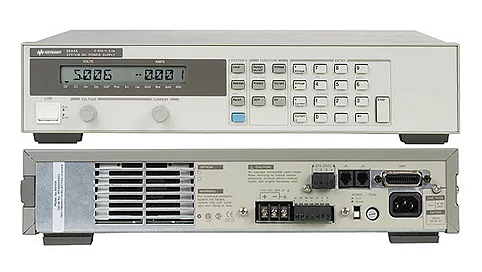

Agilent / HP / Keysight 6644A
6644A 200 Watt System Power Supply, 60V, 3.5A
Description
This unit high performance DC power supplies deliver speed and accuracy for test optimization.
This unit provide fast, low noise outputs; analog control of output voltage and current; fan speed control to minimize acoustic noise; and also parallel and series connections of multiple units.
This unit is a versatile programmable supply that is designed to maximize the test during design verification or when on the production line.
It is fully programmable to reduce test time through a variety of automated capabilities.
Key Points
Auto parallel up to three units
Outputs can be connected in parallel or in series
Programmable over voltage and over current protection
Over temperature protection
Discrete Fault Indicator/Remote Inhibit (DFI/RI)
Self test occurs at power on from an GPIB command
User definable power on state
VXI plug&play drivers
Specifications
Output voltage: 0 to 60V
Output current (40°C): 0 to 3.5A
Maximum current (50°C/55°C): 3.2 A/3A
Voltage rms: 500µV
Voltage peak to peak: 5mV
Current rms: 1.5mA
Programming accuracy: 26 mV / 0.006%
Load regulation: 4 mV / 0.25 mA
Ripple & noise (rms/p-p): 0.5mV / 5mV
