Agilent / HP / Keysight E8361A

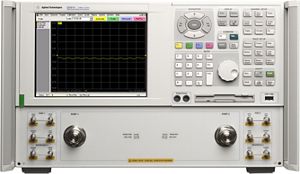

E8361A PNA Network Analyzer, 10 MHz to 67 GHz

Please help us customize your browsing experience, by selecting one the below.

Description

This vector network analyzer is a member of the PNA Series network analyzer platform and provides the combination of speed and precision for the demanding needs of today's high frequency, high-performance component test requirements.

Key Points

TRL/LRM calibration, on-wafer, in-fixture, waveguide, and antenna measurements

Mixer conversion loss, return loss, isolation, and absolute group delay

Amplifier gain compression, harmonic, IMD, and pulsed-R

94dB of dynamic range and <0.006dB trace noise.(Specified to 67GHz, with operation to 70GHz)

<26 usec/point measurement speed, 32 channels, 16,001 points
TRL/LRM calibration, on-wafer, in-fixture, waveguide, and antenna measurements

Mixer conversion loss, return loss, isolation, and absolute group delay
Amplifier gain compression, harmonic, IMD, and pulsed-RF

Specifications

94dB of dynamic range and <0.006dB trace noise.(Specified to 67GHz, with operation to 70GHz)

<

p><26 usec/point measurement speed, 32 channels, 16,001 points
