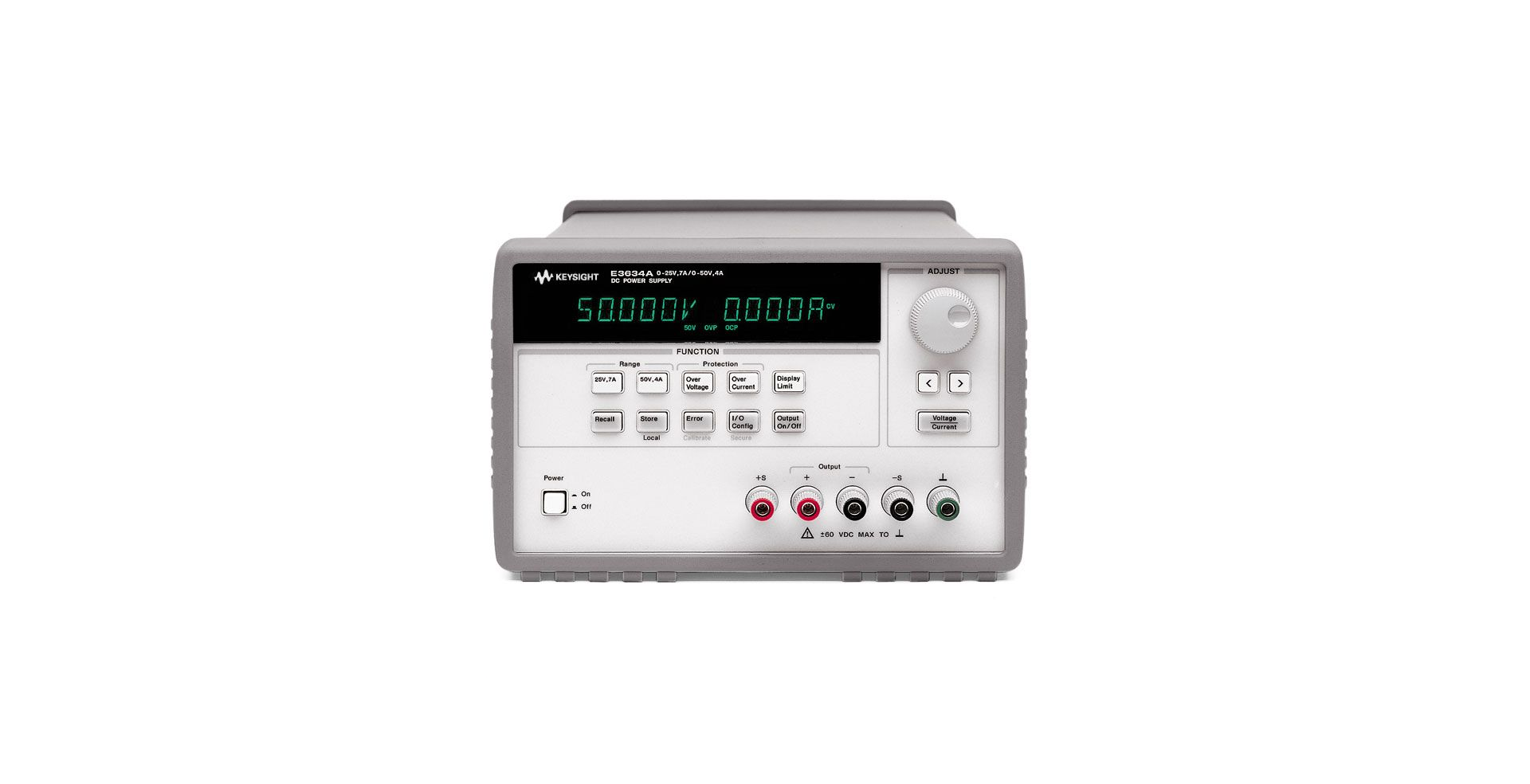

Agilent / HP / Keysight E3633A

E3633A 200W Power Supply, 8V, 20A or 20V, 10A

Note: Federal Resellers, We Do Not Sell New Equipment.
  • 90 Day Warranty Included
  • 21 Month Warranty Available
  • Save 80% - 90% from New
  • Calibration Available
  • Questions? Call 888-505-8378

Description

This unit provides dual range outputs; small, compact size for bench use; low output ripple and noise; as well as built in measurements and basic programmable features. This is a high performance supply optimized for manual and basic automated testing; and, with a combination of benchtop capabilities and system features, it is designed to help improve measurement quality and reduce test time.

Key Points

Regulation: 0.01%

Metered

Programmable

160W/200W Single output, dual range

Low noise and excellent regulation

Front and Rear output terminals

Remote Sense, OVP and OCP

SCPI compatible

HP-IB/RS-232 standard

Specifications

Output Ratings:
Range 1: 0 to 8V, 20A
Range 2: 0 to 20V, 10A

Programming Accuracy at 25°C ±5°C:
Voltage: 0.05% + 10mV
Current: 0.2% +10mA

Ripple & Noise (20Hz to 20MHz):
Normal-mode voltage: <350µVrms/3mVpp
Normal-mode current: <2mA rms
Common-mode current: <1.5µA rms

Readback Accuracy at 25°C ±5°C:
Voltage: 0.05% + 5mV
Current: 0.15% + 5mA
