Agilent / HP / Keysight E4407B

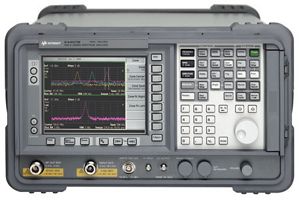

E4407B ESA-E Spectrum Analyzer, 9 kHz to 26.5 GHz

Please help us customize your browsing experience, by selecting one the below.

Description

The Agilent Technologies Inc. E4407B spectrum analyzer is a wide band, very sensitive receiver.

It works on the principle of "super-heterodyne receiver" to convert higher frequencies (normally ranging up to several 10s of GHz) to measurable quantities.

The received frequency spectrum is slowly swept through a range of preselected frequencies, converting the selected frequency to a measurable DC level (usually logarithmic scale), and displaying the same on the CRT of the Agilent Technologies Inc. E4407B.

The CRT displays received signal strength (y-axis) against frequency ( x-axis).

Key Points

0.4 dB overall amplitude accuracy
+16 dBm TOI
-167 dBm DANL, with internal preamp
10 MHz demodulation bandwidth
1 Hz narrow resolution bandwidth (optional)
1 ms sweep time (50 ns 0 span)
Variable sweep (trace points) from 2 to 8192
Segmented sweep for up to 32 discontinuous spans in one sweep
Rugged and portable for lab grade performance in the field
5 minute warm-up to guaranteed measurement accuracy

Specifications

Frequency range:9 kHz to 26.5 GHz

Frequency Accuracy: 4.1886E-09 %

Minimum Sweep Time:5 ms

Resolution Bandwidth Steps:1/3/10

Resolution Bandwidth: 10 Hz to 5 MHz

Maximum Dynamic Range:90 dB

Video Bandwidth: 30Hz to 3MHz

Single-Side-Band Noise:90 dBc/Hz

Maximum safe input level: +30 dBm (1 W)

Peak pulse power: +30 dBm (1 W)

Weight: 17.1 kg (37.7 lbs.)

Dimensions(max.): 222mm(H) x 516mm(D) x 408mm(W)
