Agilent / HP / Keysight 16760A

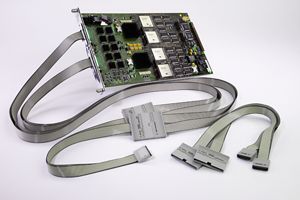

16760A Timing and State Module
Description
This state and timing module, with its new eye scan feature is the first logic analyzer that displays eye diagrams similar to eye diagrams on an oscilloscope.
Eye scan enables you to acquire, display and analyze eye diagrams on hundreds of channels simultaneously without the need to move probes.
Its low-capacitance, high-density probes provide minimum loading of your high-speed parallel buses.
In addition, it makes conventional state and timing measurements, and has differential inputs that can acquire signals at rates up to 1.5Gbits/s.
Its 64M samples of memory ensure you have the memory needed to troubleshoot complex systems.
Key Points
Timing Analysis (Asynchronous Sampling):
800MHz / 800MHz (half / full-channel) conventional timing with deep memory
400MHz transitional timing
State Analysis (Synchronous Sampling):
State clock rates up to 800Mb/s (full channel) and 1.5Gb/s (half channel)
Data rates: up to 1.5Gb/s
Automated threshold/sample position setup for accurate measurements on high-speed buses
Simultaneous eye diagrams on all channels identify problem signals quickly
Configuration Considerations:
34 channels per module, Up to 170 channels in single time base with 5 modules combined
Selectable memory depths: 64M (Standard)
Compatible with 90-pin logic analyzer probes. Probes are ordered separately. Agilent’s Probe Recommendations
Compatible with 16900 Series modular logic analyzers
Additional Capabilities:
Comprehensive single-ended and differential signal support, threshold is adjustable from -3V to 5V (10mV increments)
Specifications
Channels per module: 34Ch
Maximum channels on single time base: 170Ch
Timing Mode:
Maximum timing sample rate: half channel mode: 800MHz
Maximum timing sample rate: full channel mode: 800MHz
Transitional timing: 400MHz
State Mode:
Maximum state clock rate: 800Mb/s (full channel), 1.5Gb/s (half channel)
Maximum state data rate: 1.5Gb/s
