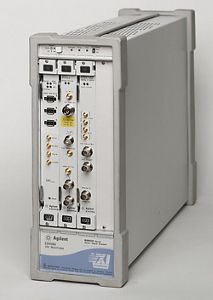

Agilent / HP / Keysight 89611S
89611S VXI-Based 70 MHz IF Vector Signal Analyzer
Description
This Vector Signal Analyzer offers advanced digital signal processing and unique error analysis tools needed to troubleshoot complex modulated IF signals.
This unit is a wide band, very sensitive receiver.
It works on the principle of super-heterodyne receiver to convert higher frequencies to measurable quantities.
Key Points
Modular, preconfigured hardware for VXI-based vector signal analysis
DC to 36MHz and 70MHz ±18MHz frequency coverage
36 MHz of analysis bandwidth
-70dBc dynamic range and <-159dBm/Hz sensitivity
DSP-based spectrum, vector, demodulation, and RF-scope analysis tools
Choose 1 or 2 channels for dual channel baseband or IF measurements
Access to all of the 89600 VSA software signal analysis capabilities
Connects to your PC via IEEE 1394 Firewire interface
Specifications
Frequency coverage: DC to 36MHz and 70MHz ±18MHz
Analysis bandwidth: 36MHz
Dynamic range: -70dBc
Sensitivity: <-159dBm/Hz
