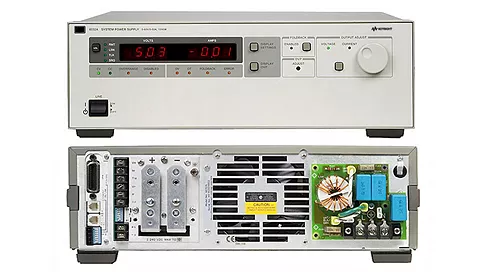

Agilent / HP / Keysight 6032A
6032A System Autoranging DC Power Supply, 60V, 50A
Description
This unit has a single Output, and a Autoranging Power Supply that takes the place of multiple power supplies in your test system by providing maximum power at a variety of operating points.
Industry standard SCPI commands and VXIPlug&Play drivers make system integration easy.
Using the serial link, up to 16 power supplies can be connected through one GPIB address.
These power supplies have excellent electrical efficiency, making them a good choice for large systems.
Key Points
Rated at 60V @ 50A, 1200W
Features HP-IB programming of voltage and current
Readback of voltage, current and status
Overvoltage/overcurrent protection
Built-in self-test and diagnostics
Full local control enable/disable
Specifications
Output Ratings:
Voltage: 0 to 60V
Current: 0 to 50A
Programming Accuracy at 25°C ±5°C
Voltage: 0.035%, +40mV
Current: 0.2%, +85mA
Ripple & Noise 20Hz to 20MHz
Voltage rms: 8mV
Voltage Peak-to-Peak: 40mV
Current rms: 25mA
Readback Accuracy at 25°C ±5°C
Voltage: 0.08%, +20mV
Current: 0.36%, +35mA
