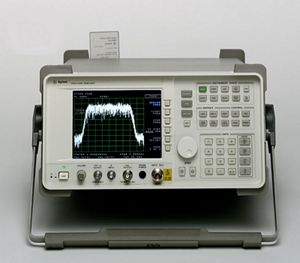

Agilent / HP / Keysight 8562EC
8562EC Portable Spectrum Analyzer, 30 Hz to 13.2 GHz
Description
The 8562EC has a color display and frequency range of 30 Hz to 13.2 GHz, which covers the spur-search ranges specified by leading standards organization in Europe and the United States for GSM. With its fast DLP execution speed, 8562EC reduces your test times in production.
Key Points
+/-1.0 dB absolute amplitude accuracy
-151 dBm/Hz displayed average noise level (DANL)
<-113 dBc/Hz phase noise at 10 kHz offset
Fast digital resolution bandwidths of 1 Hz to 3 MHz
Portable, MIL-PRF-28800, Class 3 rugged
Easily transfer screen image or trace data to PC with BenchLink software
Specifications
Frequency Specifications:
Frequency range:
Internal mixing:30 Hz to 13.2 GHz
External mixing:18 GHz to 325 GHz
Sweep time:
Range
Span = 0 Hz: 50 µs to 6000 s
Span ±100 Hz:
RBW = 300 Hz: 50 ms to 2000 s
RBW = 100 Hz: 50 ms to 100 ks
Resolution bandwidth:
Range (–3 dB):1 Hz to 1 MHz in a 1, 3, 10 sequence and 2 MHz (3 MHz at –6 dB)
Video bandwidth range: 1 Hz to 3 MHz in a 1, 3, 10 sequence
Noise sidebands:
100 Hz :<= –88 dBc/Hz
1 kHz :<= –97 dBc/Hz
10 kHz :<= –113 dBc/Hz
30 kHz :<= –113 dBc/Hz
100 kHz :<= –117 dBc/Hz
Amplitude Specifications:
Range:Displayed average noise level (DANL) to +30 dBm
Maximum safe input level:
Average continuous power:+30 dBm (1 W, input attn = 10 dB)
Peak pulse power:+50 dBm (100 W, input attn = 30 dB)
Maximum DC input voltage:
DC coupled: ±0.2 Vdc
AC coupled: ±50 Vdc
Displayed average noise level:
30 Hz:<= –90 dBm
1 kHz:<= –105 dBm
10 kHz:<= –120 dBm
100 kHz:<= –120 dBm
1 MHz to 10 MHz:<= –140 dBm
10 MHz to 2.9 GHz:<= –151 dBm
2.9 GHz to 6.46 GHz:<= –148 dBm
6.46 GHz to 13.2 GHz:<= –145 dBm
Dynamic range:
10 MHz to 2.9 GHz: > 146 dB
2.9 GHz to 6.46 GHz:> 148 dB
6.46 GHz to 13.2 GHz:> 142 dB
Environmental Specifications:
Dimensions (w/o handle, cover): 337 mm W x 187 mm H x 461 mm D
Calibration interval:2 years
Warm-up time :5 minutes in ambient conditions
Temperature: 0 °C to +55 °C (operating); –40 °C to +75 °C (not operating)
Humidity:95% @ 40 °C for 5 days
Maximum power dissipation:180 W
Weight (nominal):16.5 kg (36 lbs)
Power requirements:
115 VAC operation: 90 to 140 V rms, 3.2 A rms max, 47 to 440 Hz
230 VAC operation: 180 to 250 V rms, 1.8 A rms max, 47 to 66 Hz
