Home > Equipment > Agilent / HP / Keysight 6030A

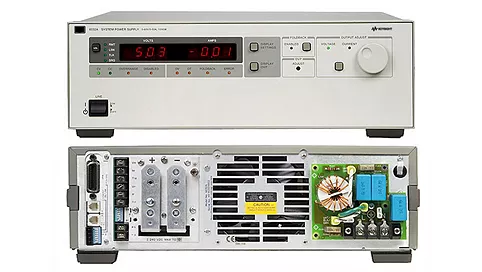

Agilent / HP / Keysight 6030A

6030A System Autoranging DC Power Supply, 200V, 17A

Note: Federal Resellers: We Do Not Sell New Equipment
  • 90 Day Warranty Included
  • 12 Month Warranty Available
  • Save 80% - 90% from New
  • Calibration Available
  • Questions? Call 888-505-8378

Description

This unit is part of the 603x family of power supplies which provide a wide and continuous range of output voltage and current levels at the rated power output.

Key Points

SCPI (Standard Commands for Programming Instruments)

Autoranging output

VXI plug&play drivers

Specifications

Output Ratings:
Voltage: 0 to 200V
Current: 0 to 17A

Programming Accuracy at 25°C ±5°C
Voltage: 0.035%, +145mV
Current: 0.2%, +25mA

Ripple & Noise 20Hz to 20MHz
Voltage rms: 22mV
Voltage Peak-to-Peak: 50mV
Current rms: 15mA

Readback Accuracy at 25°C ±5°C
Voltage: 0.08%, +80mV
Current: 0.36%, +15mA
