Agilent / HP / Keysight 85108L

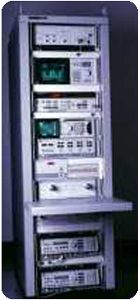

85108L Pulsed-RF Network Analyzer System, 45 MHz to 2 GHz

Note: Federal Resellers, We Do Not Sell New Equipment.
  • 90 Day Warranty Included
  • 21 Month Warranty Available
  • Save 80% - 90% from New
  • Calibration Available
  • Questions? Call 888-505-8378

Description

This Network analyzer is an instrument which measures the complex transmission and reflection characteristics of two port devices in the frequency domain.

It does this by sampling the incident signal, separating the transmitted and reflected waves, and then performing ratios that are directly related to the reflection and transmission coefficients of the two port.

Frequency is swept to rapidly obtain amplitude and phase information over a band of frequencies of interest.

This unit utilize synthesized frequency sources to provide a known test stimulus that can sweep across a range of frequencies or power levels.

Key Points

Isothermal, high power, pulsed

Wide Dynamic Range

Low duty cycles

Up to 100W pulsed output/50W CW

1600mm Rack

Specifications

Form Factor: System

Type: Vector

Maximum Output Power: 100mW

No. of Receiver Channels: 1Ch

Frequency Range: 45MHz to 2GHz

Dynamic Range: 72dB to 101dB

Maximum Input Decibel: 20dBm
