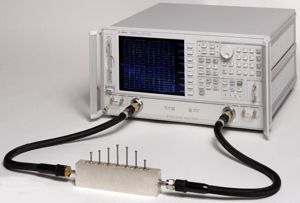

Agilent / HP / Keysight 8722ES
8722ES S-parameter Vector Network Analyzer, 50 MHz to 40 GHz
The Agilent 8722ES is a Vector Network Analyzer with S-Parameter that will allow complete characterization of RF and microwave components.
The 8722ES is an instrument that measures the complex transmission and reflection characteristics of two-port devices in the frequency domain.
The 8722ES does this by sampling the incident signal, by separating the transmitted and reflected waves, and then performing ratios that are related to the reflection and transmission coefficients of the two-port.
The frequency is swept to rapidly obtain amplitude and phase information over a band of frequencies of interest.
The 8722ES can provide a wealth of knowledge about a device under test (DUT), including its magnitude, phase, and it's group-delay response.
Excellent measurement accuracy.
Two measurement channels.
Four display channels.
Frequency and power sweeps.
Fast sweep and data transfer speed.
Pass/Fail testing, powerful marker functions.
Electronic calibration (ECal).
Internal automation with test-sequencing.
Optional time-domain, high power test set, four samplers and TRL calibration, direct sampler access, frequency-offset mode.
Accuracy (at 23° C ±3° C): ±10 ppm
Connector type: 2.4 mm precision
Operating temperature: 0° to 55° C
Non-operating Temperature: –40° to +70° C
Line power: 115 V nominal (90 V to 132 V) or 230 V nominal (198 V to 264 V) @ 48 to 66 Hz, 280 VA max
Net Weight: 25 kg (54 lb)
Shipping Weight: 28 kg (61 lb)
Dimensions: 222 mm H x 425 mm W x 457 mm D (8.75 x 16.75 x 18.0 in)
