Agilent / HP / Keysight 85062B

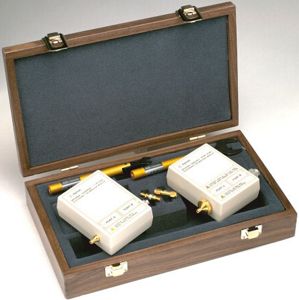

85062B 2-port MW Electronic Calibration (ECal) Module, 1 to 26 GHz
Description
This Calibration Module provides repeatable, accurate measurements while bringing convenience and simplicity to your daily calibration routine.
ECal replaces the traditional calibration technique which uses mechanical standards.
With mechanical standards, you are required to make numerous connections to the test ports for a single calibration.
These traditional calibrations require intensive operator interaction, which is prone to errors.
With ECal, a full two port calibration can be accomplished with a single connection of the ECal module and minimal operator interaction.
Key Points
Full two port calibration with a single-connection for easy calibrations
Precision slot less connectors provide greater measurement accuracy and repeatability than standard connectors
Simple user interface
Compatible with Agilent network analyzers
Straight forward non insertable calibrations
Specifications
Minimum frequency: 1GHz
Maximum frequency: 26.5GHz
Connector type to DUT: 3.5mm(f)
