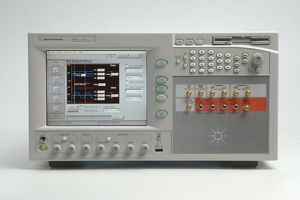

Agilent / HP / Keysight 81141A

81141A Series High-Speed Serial Pulse Data Generators, 7 (81141A) and 13 GHz (81142A)

Note: Federal Resellers: We Do Not Sell New Equipment
  • 90 Day Warranty Included
  • 12 Month Warranty Available
  • Save 80% - 90% from New
  • Calibration Available
  • Questions? Call 888-505-8378

Description

This Generator provides what is needed to conduct physical layer tests precision low jitter signals or full control of data streams for stress tests.

Its linear delay modulation is essential for jitter tolerance and jitter
transfer measurements.

This unit will enable computer and semiconductor test
engineers to accurately characterize components being developed for the
next generation serial buses used in high-speed transmission systems.

Key Points

Data formats RZ, R1, NRZ with flexible parameters for high quality waveforms

Patter and sequence capabilities for protocol like data

Linear delay modulation up to 1GHz for jitter tolerance testing

Differential outputs for data, clock and trigger

Trigger and external clock input

Specifications

<

p>Fastest transition Times: <20ps

Length: 22.84inch

Width: 16.71inch

Height: 8.72
