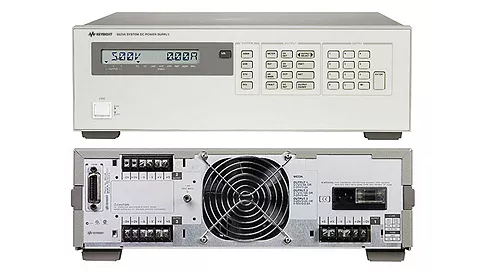

Agilent / HP / Keysight 6622A
6622A System Power Supply, 80W, 2 outputs
Description
This is a System Power Supply with 80W, and 2 outputs. The high performance DC power supply offers spec and accuracy for test optimization. The multiple output, 40 W - 105 W GPIB 6621A-6624A and 6627A have dual-range outputs; fast, low-noise outputs; built-in measurements, advanced programmable features; and protection features to ensure DUT safety. The 100W, dual-output 6622A is a versatile solution that will help improve system accuracy and reduce test time in a 3U high package.
Key Points
GPIB programming of voltage and current
Measured voltage and current read-back over the GPIB
Two outputs can be connected in parallel or in series
Automatic selection of operating voltage and current range
Programmable over-voltage and over-current protection
Self-test occurs at power-on from an GPIB command
Electronic calibration via GPIB
10 store-recall states
SCPI (Standard Comments for Programming Instruments)
VXI plug&play drivers
Specifications
Output Ratings:
Low-range volts, amps: 0 to 20V, 0 to 4A
High range volts, amps: 0 to 50V, 0 to 2A
Programming Accuracy:
Voltage: 50mV, + 0.06%
Current: 40mA, + 0.16%
Ripple & Noise:
Constant voltage rms: 500µV
Peak-to-peak: 3mV
Constant current rms: 1mA
Readback Accuracy:
Voltage: 50mV, + 0.05%
+Current: 8mA, + 0.1%
-Current: 20mA, + 0.2%
