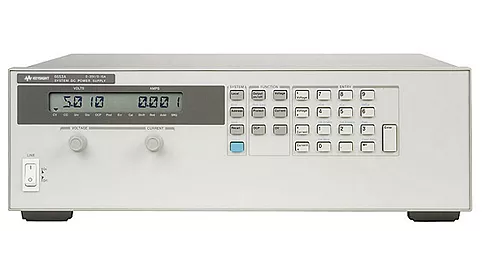

Agilent / HP / Keysight 6651A

6651A DC Power Supply, 0-8V, 0-50A, 400W

Note: Federal Resellers: We Do Not Sell New Equipment
  • 90 Day Warranty Included
  • 12 Month Warranty Available
  • Save 80% - 90% from New
  • Calibration Available
  • Questions? Call 888-505-8378

Description

This unit is a high performance DC power supplies deliver speed and accuracy for test optimization. This unit provide fast, low noise outputs; analog control of output voltage and current; fan speed control to minimize acoustic noise; and also parallel and series connections of multiple units. Single output of this unit is a fast and flexible power supply for automated testing, and is designed to increase the test with fast up and down programming times. This power supply provides many talker / listener functions including remote programming of voltage and current with feedback of actual measured output values.16 supplies can be connected to one HP-IB interface via a serial link connection.

Key Points

Increase test throughput with fast, low noise outputs

Utilize analog control of output voltage and current

Simplify cabling with built in measurements

Ensure DUT safety with protection features

Auto parallel up to three units

Outputs can be connected in parallel or in series

Programmable over voltage and over current protection

Over temperature protection

Discrete Fault Indicator/Remote Inhibit (DFI/RI)

Self test occurs at power on from an GPIB command

User definable power on state

VXI plug&play drivers

Specifications

Peak to Peak: 3mV

Form Factor: Benchtop

No. of Outputs: 1o/p

Output 1 Max. power: 400Watts

Voltage Ripple and Noise: 300uV

Current Ripple and Noise: 25mA

Load Regulation, Voltage: 1mV

Load Regulation, Current: 2mA

Line Regulation, Voltage: 0.5mV

Line Regulation, Current: 2mA

Transient Response Time: 100us

Programming Response Time: 15ms
