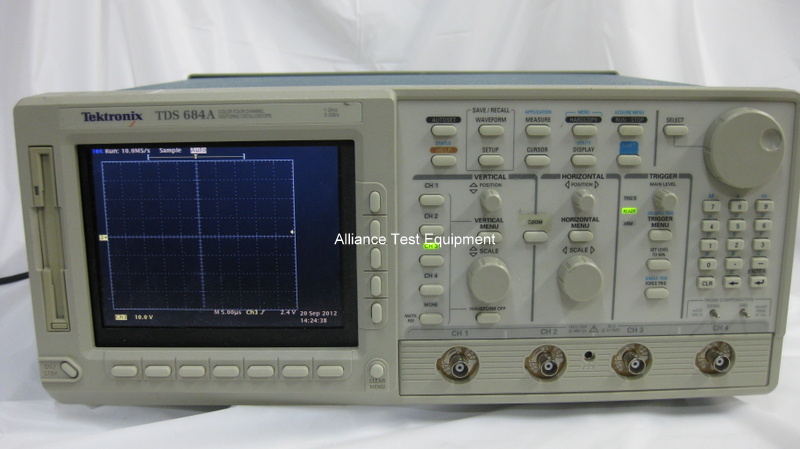

Tektronix TDS684A

Oscilloscope Color 1GHz 4Ch 5GSa/s

Please help us customize your browsing experience, by selecting one the below.

Description

The Tektronix TDS684A is a Digital Oscilloscopes with 4 Channels and has a bandwidth of 1 GHz.

Specifications

Channels:4

Sample Rate:5 GS/s

Bandwidth:1 GHz

Maximum Record Length per Channel:15,000 pts

<

p>Vertical Resolution:8-Bits; <11-Bits with averaging

Vertical Sensitivity:1 mV/div to 10 V/div.

Input Impedance Selections:1 Mohm in parallel with 10 pF, or 50 ohm (AC and DC coupling).

Input Coupling:AC, DC or GND.

Time/div range:500 ps/div to 5 s/div
