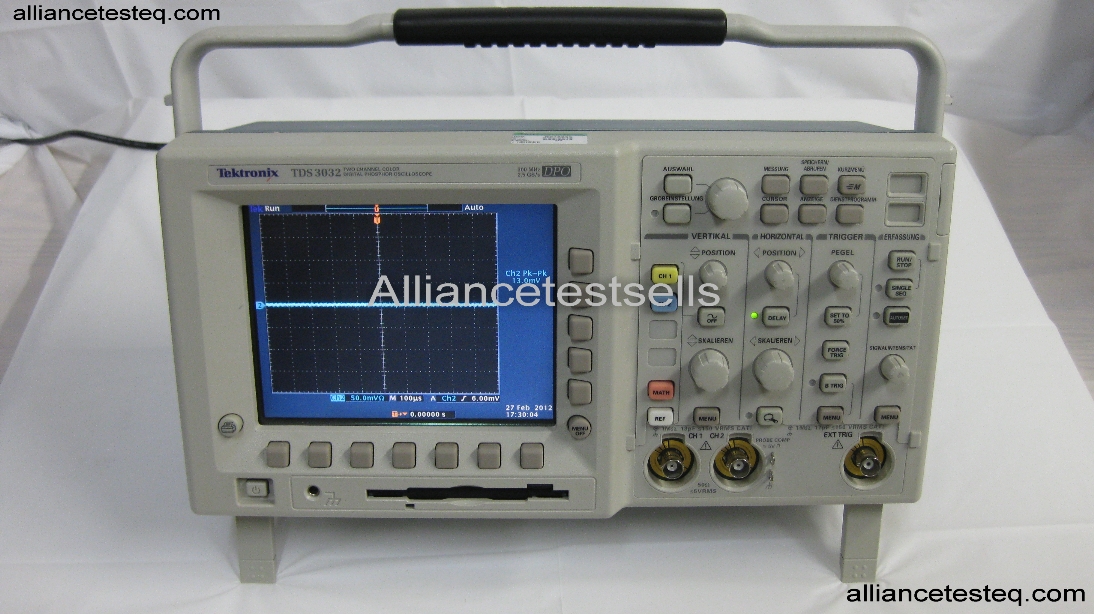

Tektronix TDS3032
Oscilloscope 300MHz 2Ch 2.5GSa/s
Description
The Tektronix TDS3032 Digital Phosphor Oscilloscope (DPO) has advanced waveform capture, display, and measurement capabilities. This instrument has three dimensions of signal information, these are amplitude, time, and distribution of amplitude over time, in real-time.
Key Points
Full VGA Color LCD on all Models
Built-in Floppy Disk Drive For Easy Storage and Documentation
21 Automatic Measurements
Centronics Port Standard on all Models for Quick, Convenient Hardcopies
9-bit Vertical Resolution
Multi-Language User Interface
QuickMenu User Interface Mode for Quick, Easy Operation

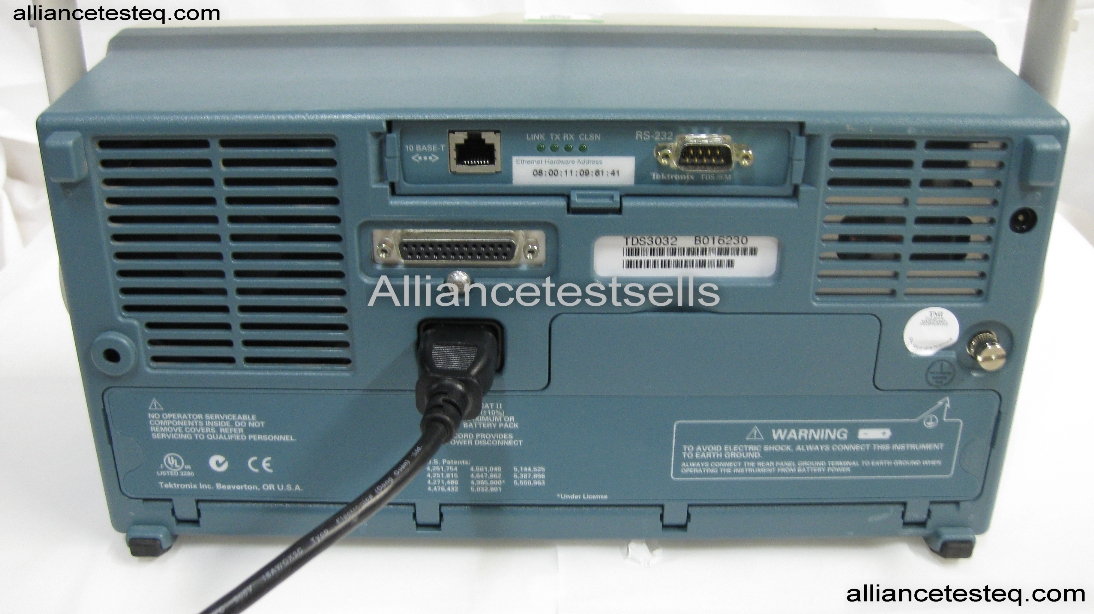

Optional Modules for RS-232, GPIB, LAN or VGA Communication Ports
Advanced Triggers, such as, Glitch, Width, and Logic Standard on 4 Channel Models
Telecommunications Mask Testing (TMT)
Fast Fourier Transform (FFT) for Frequency and Harmonic Analysis Standard on 4 Channel Models
Extended Video Application Module
Support for Active Probes, Differential Probes, and Current Probes that Provide
Automatic Scaling and Units
Specifications
Bandwidth: 300 MHz
Channels: 2
Sample Rate: 2.5GSa/s
Record Length: 10,000 points
Vertical Resolution: 9 bits
Vertical Sensitivity: 1mV to 10V/div
Vertical Accuracy: +/-2%
Input Coupling: AC, DC, GND
Input Impedance: 1MOhm in parallel with13pF / 50Ohms
Timebase: 2ns to 10s/div
