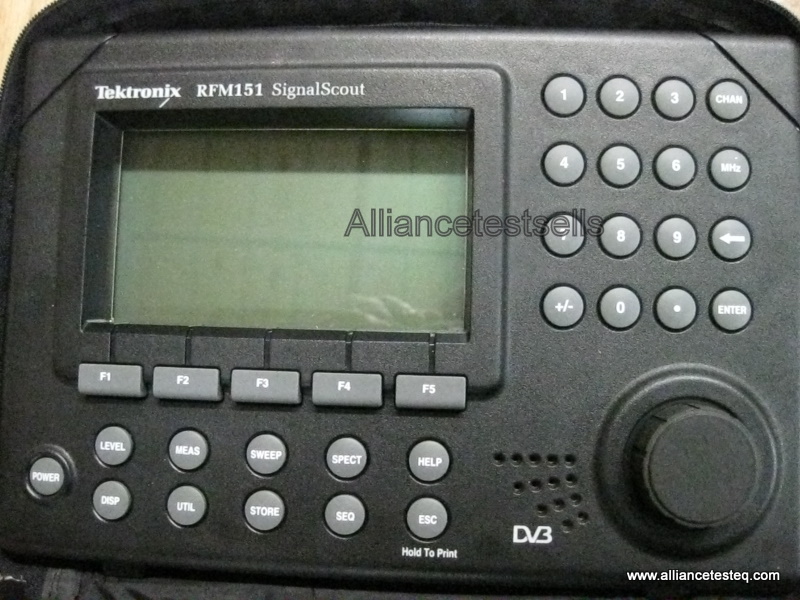

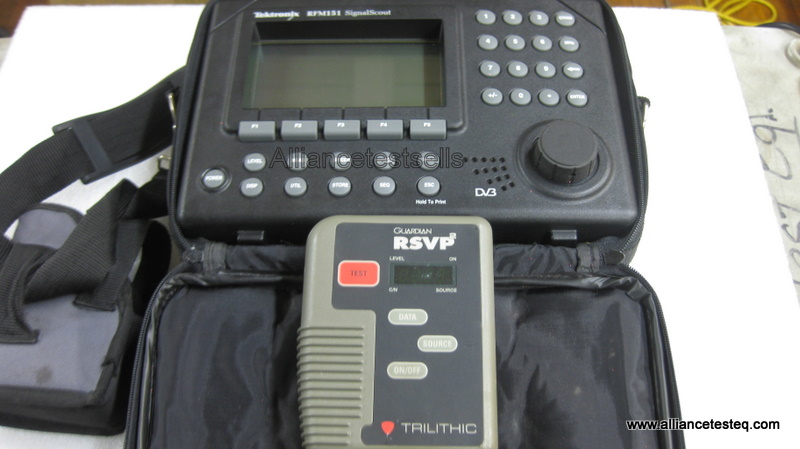

Tektronix RFM151

SignalScout Cable TV RF Analyzer

Please help us customize your browsing experience, by selecting one the below.

Description

The Tektronix RFM151 is a Signal Scout Cable VRF Analyzer. The RFM151 is designed to meet the demanding requirements of cable television technicians performing troubleshooting and maintenance operations anywhere in the network. The RFM151 has all of the basic signal level measurement capabilities, also has spectrum analysis, ingress and digital channel RF measurement capabilities which are not available in comparable products.

Key Points

Digital Channel Level and Noise Testing
Ingress Monitoring and Troubleshooting
Cable System Leak Tracking
Analog Channel Performance Verification and Troubleshooting
Digital Channel RF Measurement Suite Includes Average Power Level Plus Noise/Distortion Measurement
Exclusive Ingress Monitor Mode Records Ingress Violations of up to 32 User-defined Frequency and Level Windows
Enhanced Spectrum Mode Increases Ability to Capture Low-level and Bursty Signals

Specifications

Frequency range: 5 Mhz to 1 Ghz
Input impedance: -75 ohm
Repeatability: +/- 1
max range: 48 dB
spectrum mode dynamic range: -50 db
Reference level range: 0 dBmv to 60 dBmv
