Tektronix P6009

100X 120MHz High Voltage Probe

Note: Federal Resellers: We Do Not Sell New Equipment
Tektronix P6009 -
  • 90 Day Warranty Included
  • 12 Month Warranty Available
  • Save 80% - 90% from New
  • Calibration Available
  • Questions? Call 888-505-8378

Description

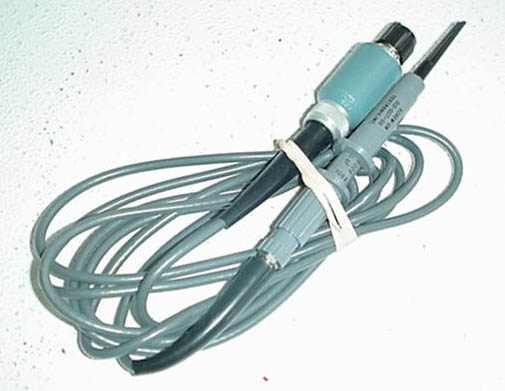

This High Voltage Probe is a low input capacitance, high voltage passive probe with a signal attenuation of 100X.

It is designed for use with wide band, real time oscilloscopes, and may be used with any plug-in unit or oscilloscope having a 1megohm input resistance and an input capacitance of 15 to 47pf.

This unit is available with a standard BNC output connector or with a special BNC connector for readout oscilloscopes.

It consists of a probe body assembly, a 9 foot cable, and a compensating box assembly with a BNC connector.

The compensating box houses adjustments for optimizing the high frequency response of the probe.

Key Points

Instrument application Oscilloscope

Measurement Parameter is Voltage

Probe type is Passive

Cable Length of 274.32cm

Connector type (main signal) is BNC(f)

Rise Time of 2.9ns

To match Plug-ins&Oscilloscope

Specifications

Form Factor: Probe

Bandwidth: DC to 120MHz (with a 7A16 Amplifier and a 7704 Mainframe)

Attenuation: 100X ±3% (including 1MΩ, ±2% amplifier input)

Input Resistance: 10MΩ ±2%

Input Capacitance: approx. 2.5pF

Scope Input Resistance: 1MΩ

Compensation Range: 8pF to 47pF

Readout Pin: Optional

Ground Ref: NO

ID Button: NO

Max Rated Voltage: 1.5KVRMS

Cable Length: 9 feet

Net Weight: 8oz

Scope Compatibility: Most General Purpose (7A16)
