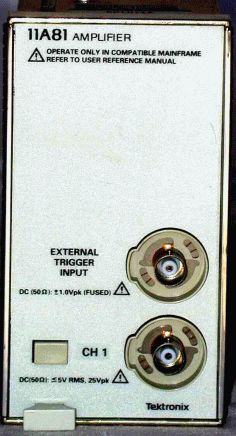

Tektronix 11A81

Single Channel Amplifier

Note: Federal Resellers: We Do Not Sell New Equipment
Tektronix 11A81 -
  • 90 Day Warranty Included
  • 12 Month Warranty Available
  • Save 80% - 90% from New
  • Calibration Available
  • Questions? Call 888-505-8378

Description

This Amplifier is a graph displaying device, it draws a graph of an electrical signal.

In most applications, the graph shows how signals change over time the vertical (Y) axis represents voltage and the horizontal (X) axis represents time.

The intensity or brightness of the display is sometimes called the Z axis.

This unit's simple graph can tell you many things about a signal, such as the time and voltage values of a signal, the frequency of an oscillating signal, the “moving parts” of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions, whether or not a malfunctioning component is distorting the signal, how much of a signal is direct current (DC) or alternating current (AC) and how much of the signal is noise and whether the noise is changing with time.

Key Points

2GHz Trigger Bandwidth

Deflec Factor 10mV to 1V/div

Accuracy +/-1

Typical disp noise 0.025

Data rate 625MB/s

Std BNC w/TEKPROBE interfc con

Max Safe input level: +/-1V

Specifications

Form Factor: Module (proprietary interface/bus)

Bandwidth: 3GHz

Number of Channels: 1Ch

Rise time: 130ps

Input Impedance: 50ohms

Input Coupling: DC

Maximum Input Voltage: 5Vrms

Trigger Source: External,Internal

Trigger Sensitivity: 2mV
