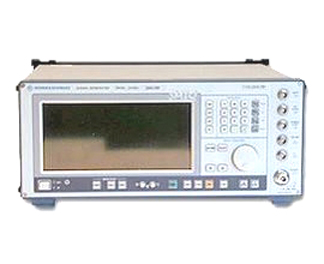

Rohde & Schwarz SMIQ06B
Signal Generator 300KHz to 6.4GHz
Description
This unit is a vector signal generator with a frequency range of 300KHz to 6.4GHz.
The high grade I/Q modulator fitted as standard ensures minimum error vector magnitude and high intermodulation suppression.
Using modern digital signal processor (DSP) technology, the versatile concept allows the generation of high precision digital modulation signals at high bit rates without any limitations on modulation modes or standards.
In addition to digital modulation, this unit provides the full range of analog modulation modes as well as simultaneous modulation capability.
Key Points
Fast setting time for frequency
Frequency hopping
High spectral purity
RF, AF and level sweep
Broadband AM,Vector Modulation Internal Modulation Generator
TDMA,CDMA,W-CDMA Signal Genera
Analog&Digital Modulation
RF,AF & Level Sweeps
Specifications
Form Factor: Benchtop
Frequency Range: 300KHz to 6.4GHz
Frequency Resolution: 0.1Hz
Frequency Switching Time: 15ms
Output Power: -140dBm to 13dBm
Power Resolution: 0.1dB
Output Impedance: 50ohms
Single-Side-Band Noise: -116dBc/Hz to -126dBc/Hz
