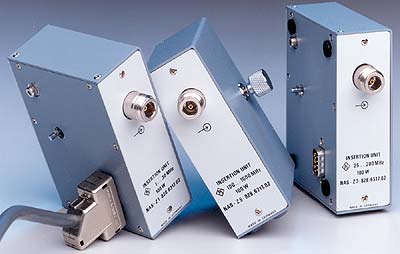

Rohde & Schwarz NAS-Z7
Insertion Unit 50ohm
Description
This insertion unit is ideal for measurements on mobile stations which according to definition are sending signals in only one of the eight time slots.
Transient overshoots of the signal bursts are eliminated by a signal controlled circuit so that the forward and reflected power as well as the SWR can be correctly measured and indicated.
Key Points
Two moving coil meters
Auto ranging
Battery operation
Automatic switch off
High EMI immunity
Specifications
Frequency range: 890 to 960MHz and 1710 to 1990MHz
Power measurement range: 0.01 to 30W
SWR: <1.15
Directivity: >26dB
