Rohde & Schwarz NAS-Z1
Insertion Unit 50ohm
Description

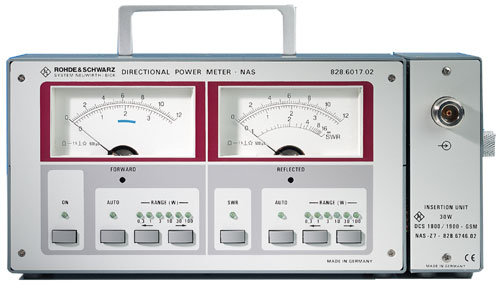

This Insertion units are either plugged to the side of the NAS or connected via a 1.5m long cable for measurements at test points that are difficult to reach.
Each insertion unit contains its individual calibration data which are read by the NAS and considered in the measurement results.
Key Points
High impedance DC and AC voltage measurements in noncoaxial circuits
Level measurements in 50 O lines
Terminated power measurements
For mobile use, service, development, production and quality management
Digital sensor interface
Sensor operation directly on PC
Specifications
Frequency range: 9KHz to 3GHz
RF Probe: 0.1 to 1000MHz
Number of Channels: 1
