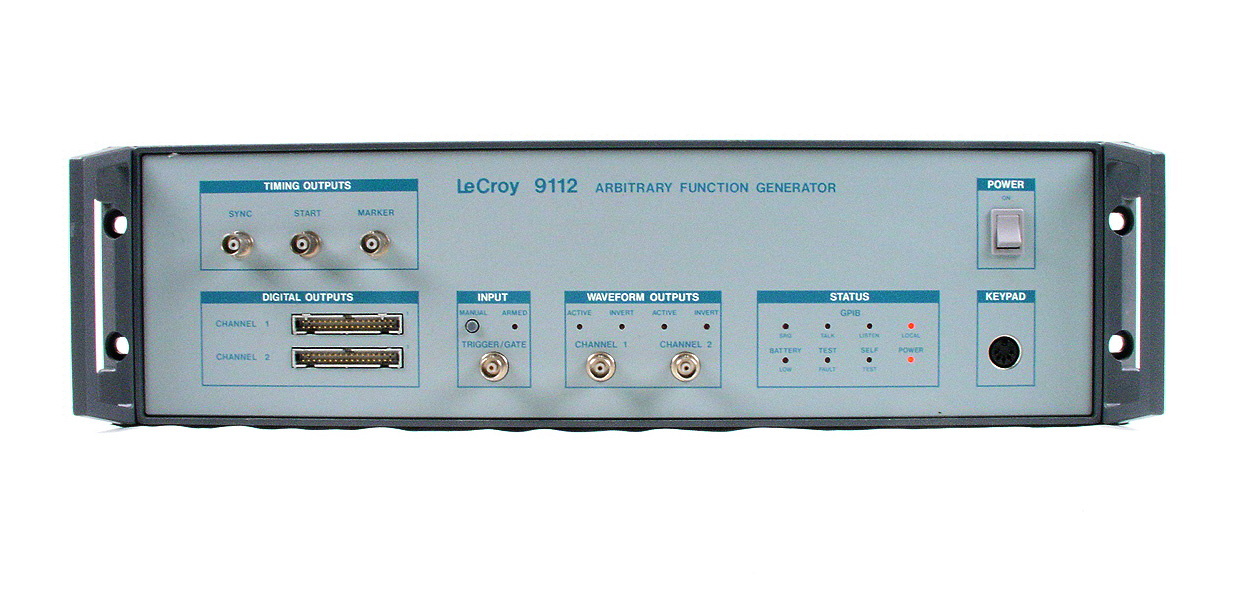

Lecroy 9112

This Generator is a basic mainframe unit.

The standard unit is remotely programmable over GPIB.

This unit has local control only through use of the optional 9100/CP control panel.

It is a signal source whose output voltage as a function of time can be programmed via an array of data values and various control settings.

The instrument generates the waveform by sequentially stepping through the array and outputting a voltage proportional to each data value for a fixed time interval or sample period point.

Selecting or specifying the contents the data array are performed separately from entering the control settings commands so the user has a great deal of flexibility in modifying a waveform without having to change its basic shape (the waveform data array).
