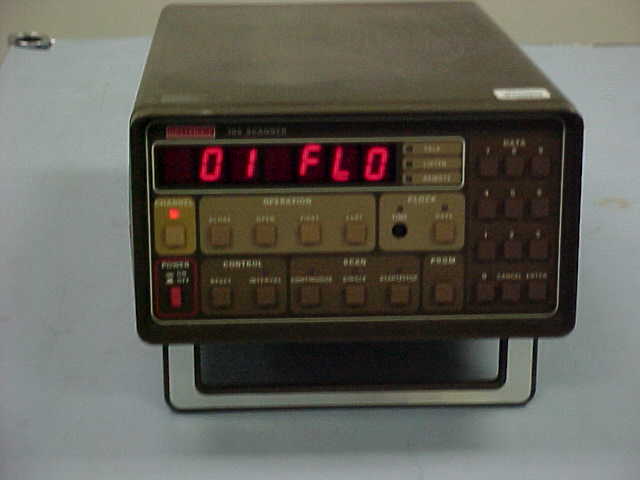

Keithley 705
Scanner
Description
This Scanner is a low cost IEEE compatible scanner.
The basic mainframe can accommodate two plug in scanner cards.
Each card can have different pole configurations.
In the l pole configuration the card has 20 channels.
The 4 pole configuration allows 10 channels with two cards (for four wire ohms).
Key Points
Selectable scan rate from 10ms to 999.999sec
Selectable scan modes that allow the operator to scan the first channel to the last channel once, continuously or manually
Thirteen internal programs that are available through the front panel
Model 705 mainframe can accommodate two scanner plug in cards
Several different scanner relay cards are available as options
Specifications
Relay drive: 350mA
Storage environment: -25O to 65°C
Operating environment: 0° to 50°C
Relative humidity: Up to 35%
