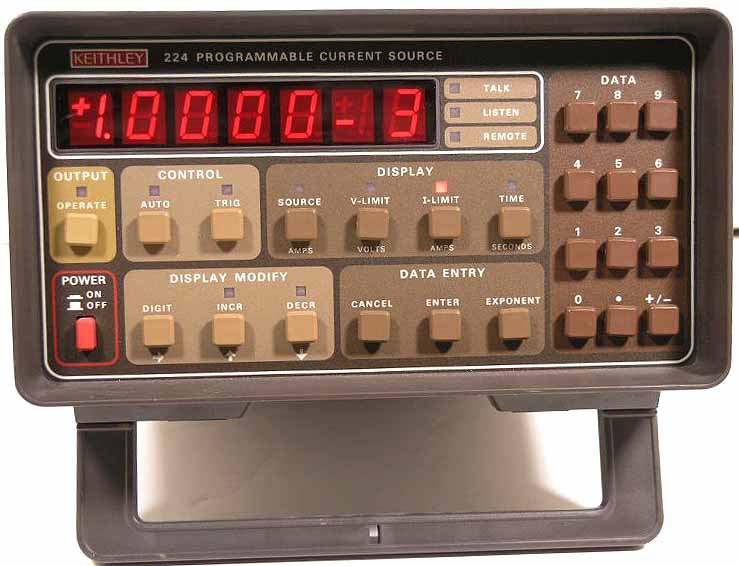

Keithley 224
Programmable Current Source 5nA-100mA,105V
Description
The Programmable Current Source was designed for general purpose bench or system use.
The INCREMENT/ DECREMENT function is manual or automatic, and selectable dwell times provide stepped ramp capabilities.
It allows flexible programming including current, V-LIMIT, local lockout, service request masks, and serial polling.
A digital I/O port on the IEEE-488 interface card provides four TTL compatible input and output lines.
The status of the I/O port can be interrogated and changed over the bus.
Key Points
Increment/Decrement
Range of Dwell Times
Output Load
External Trigger
Output Connections
All connections on rear panel
Specifications
Load regulation V/C: 0.1%
Other features: <0.01%
Output 1,volts/ max. current: 105V to 100mA
Total power: 10.5W
Display: 0.5 in LED digits
Range of dwell times: 50ms to 999.9
