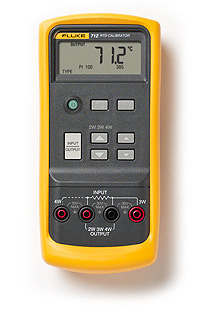

Fluke 712
RTD Calibrator
Description
This RTD Calibrator delivers outstanding performance, durability and reliability.
It is a compact, lightweight, and easy to carry tool.
With a push button interface similar to the multifunction Fluke 740 Series Documenting Process Calibrators, this unit is easy to use.
It is EMI tolerant, dust and splash resistant, and features a removable battery door for quick battery changes.
Key Points
Measure temperature from RTD output
Simulate RTD output
Operates with seven types of RTDs
Measure additional RTDs using Ohms measurement function
Simulate additional RTDs using Ohms source function
ºF or ºC selectable
Four shrouded banana jacks
Holster features test lead storage
Compatible with toolpack magnetic hanging system
Specifications
Measure / simulate RTD Range: 5Ω to 4000Ω
Display: Clear 5 digit LCD
Operating Temperature: -10ºC to 55ºC
Operating Altitude: 3,000m max
Size: 187mm L x 87mm W x 32mm D
Weight: Approx. 330g
Battery type: Single 9V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline
