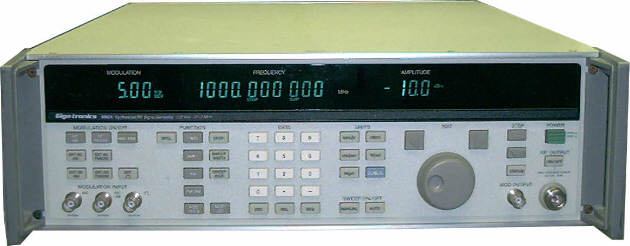

Fluke 6080A

Signal Generator

Please help us customize your browsing experience, by selecting one the below.
Fluke 6080A -

Description

This Signal Generator features high performance modulation, wide output level range and exceptionally high spectral purity.

This unit covers frequencies to 1056MHz at levels of -140dBm to +19dBm.

Full modulation capability is standard where AM, FM, pulse, and phase modulation can be combined for complex signal simulation.

Key Points

Frequency range of 0.1MHz to 1050MHz

Phase noise at 1GHz is -131dBc/Hz at 20KHz offset

Non harmonic spurious performance is -100dBc at 1GHz

Full modulation capability is standard

AM, FM, pulse, and phase modulation can be combined for complex signal simulation

Specifications

Instrument Type: Analog RF

Maximum Frequency: 1056MHz

Modulation: AM / FM / Phase / Pulse Modulation

Output Power Range: -140dBm to +19dBm

Timebase: TCXO Timebase
