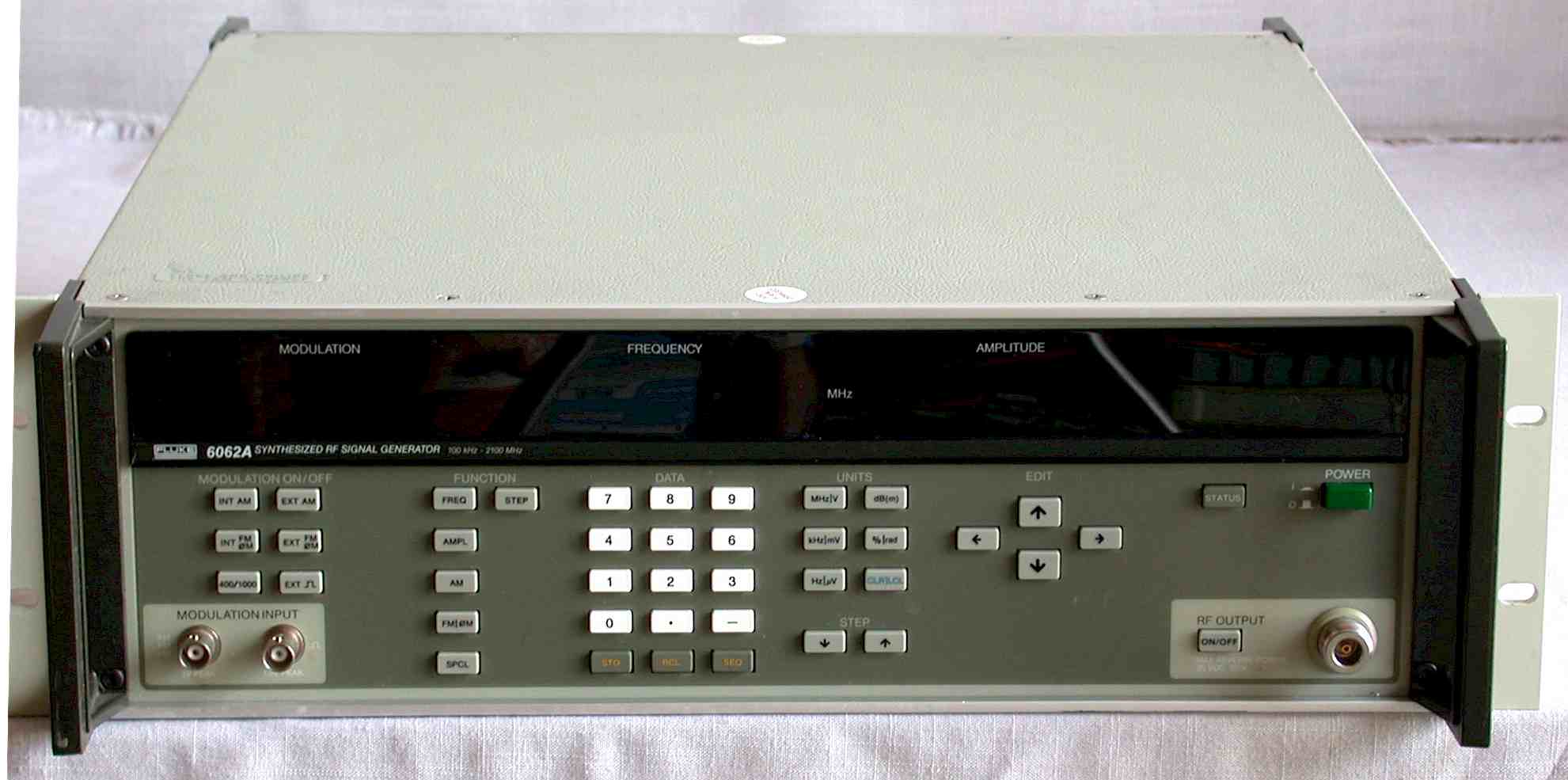

Fluke 6062A
Synthesized RF Signal Generator 1Mhz to 2100MHz
Description
This Synthesized RF Signal Generator is designed for general testing applications requiring good modulation, frequency accuracy, and output RF performance with moderate spectral purity.
It is fully programmable and has a VFD display that indicates current settings and status.
This unit has a crystal time base or optionally a choice of a medium stability or ovenized, high stability time bases.
Key Points
AM, FM, Phase, and Pulse modulation capability
100KHz to 2100MHz at levels from -137 to +16dBm
Amplitude accuracy is ±1.5dB from -127dBm to +13dBm
Synthesized
Timebase
Specifications
Instrument Type: RF Signal Generator
Maximum Frequency: 2100MHz
Modulation: AM / FM / Phase / Pulse Modulation
Frequency Range: 1MHz to 2100MHz
