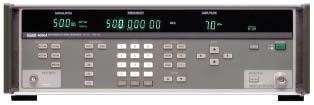

Fluke 6061A
Synthesized Signal Generator
Description
This Signal Generator is an ideal choice for general purpose RF testing from 10KHz to 1.05GHz.
This unit is programmable from -147 to above +13dBm with 0.1dB resolution.
Typical SSB phase noise is -123dBc/Hz at 20KHz offset from 500MHz carrier.
Key Points
Relative frequency and amplitude modes
Step programming and Bright-Digit editing
50watt reverse power protection
Non-volatile memory that can store 50 instrument set-ups
Low microphonics due to heavy weight construction
Self diagnostics
Specifications
Frequency Range: 10KHz to 1.05GHz
Frequency Resolution: 10Hz
Output Accuracy: 1.0dB
Output Range: -125dBm to 15dBm
Output Resolution: 0.1dB
Programmable Interface: -123dBc/H
SSB Phase Noise Range: IEEE488
Time Base Stability: 0.0000005
