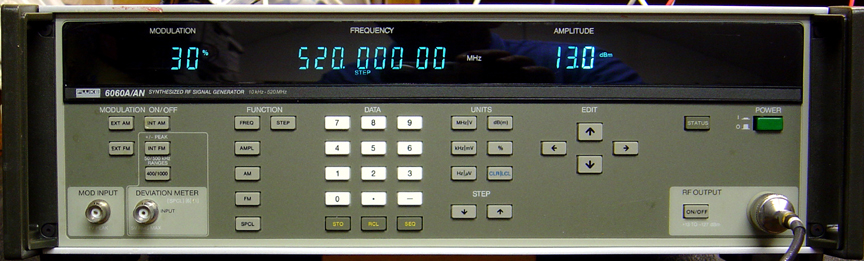

Fluke 6060A
Synthesized RF Signal Generator
Description
The 6060A Synthesized RF Signal Generator is a fully programmable unit covering the 100kHz to 1050MHz range. Output levels of -137 dBm to +13 dBm. AM/FM modulation (internal and external). The Fluke 6060A is a used Synthesized RF Signal Generator.Product Specs:Frequency Range:10KHz to 1050 MHzOther Info:The Fluke 6060A Synthesized RF Signal Generator is a fully programmable unit covering the 100kHz to 1050MHz range. Output levels of -137 dBm to +13 dBm. AM/FM modulation (internal and external).
Key Points
GPIB control and readback of current, voltage and resistance
Continuous and pulse modes
Full protection from over-current
Reverse polarity
Electronic calibration Trigger for external synchronization
Research and development
Production
Incoming inspection
Specifications
Frequency:
Range: 1 to 1050 MHZ
Resolution: 10 HZ
Output:
Range:1v to 32 nV or +13 dBm to -137 dBm
Resolution: 0.1 dB
Spectral purity:
Harmonics: <-30 dBc
