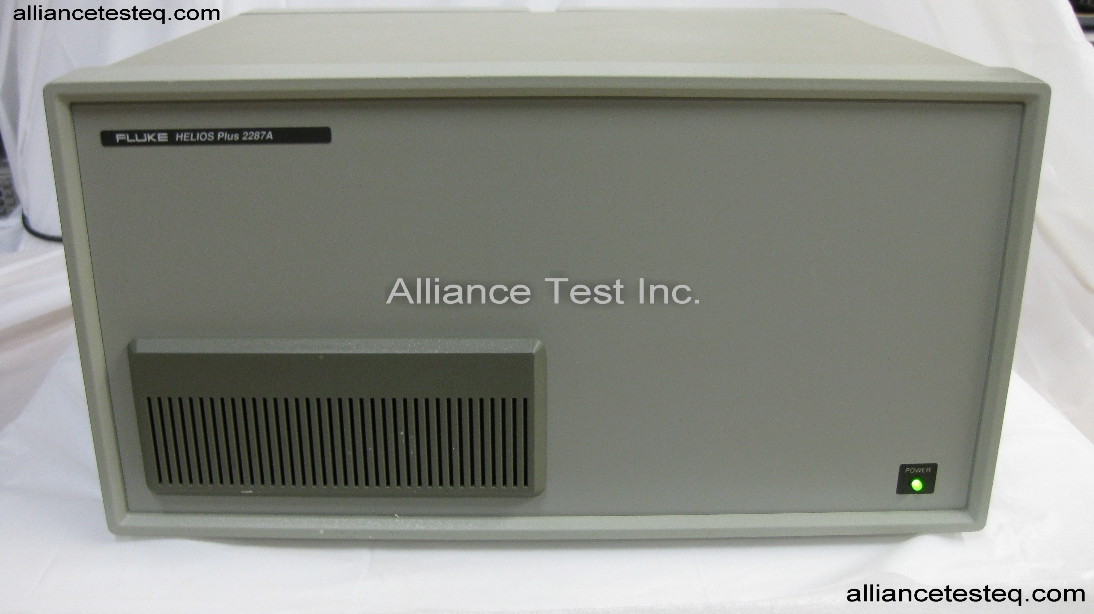

Fluke 2287A
Helios Plus Data Acquision System
Description
2287A is a data acquisition and control sub-system that combines measurement accuracy, excellent noise immunity, and exceptional configuration flexibility in a rugged package. It also offers special features for autonomous scanning, data buffering and alarm checking. Measurement speed is up to 1000 channels per sec.
Key Points
Wide Range of measurment.
PC application SW.
15 days Battery Back-up.
320Kbytes mem (RAM).
RTD, K, E, N, R, S, B.
C, (J,T-DIN&NBS) TC.
Specifications
Form Factor: Benchtop.
Simultaneous Channels: 1000Ch.
Measurement Parameter: ACV,DCV,Frequency,Resistance.
Maximum Frequency: 400KHz.
DC Volts Minimum Range: 64 mV.
DC Volts Maximum Range: 64 V.
DC Volts Minimum Resolution: 0.5 uV.
DC Volts Maximum Resolution: 500 mV.
DC Volts Basic 1 yr accuracy: 0.05 %.
AC Volts Minimum Range: 5 V.
AC Volts Maximum Range: 250 V.
AC Volts Maximum Resolution: 0.1 V.
AC Volts Basic 1 Year Accuracy: 1.5 %.
Resistance Minimum Range: 256 Ohm.
Resistance Maximum Range: 64 kOhm.
Resistance Minimum Resolution: 2 mOhm.
Resistance Maximum Resolution: 500 mOhm.
Resistance Basic 1 yr accuracy: 0.1 %.
weight:8.5 kg(18.7 lb)
