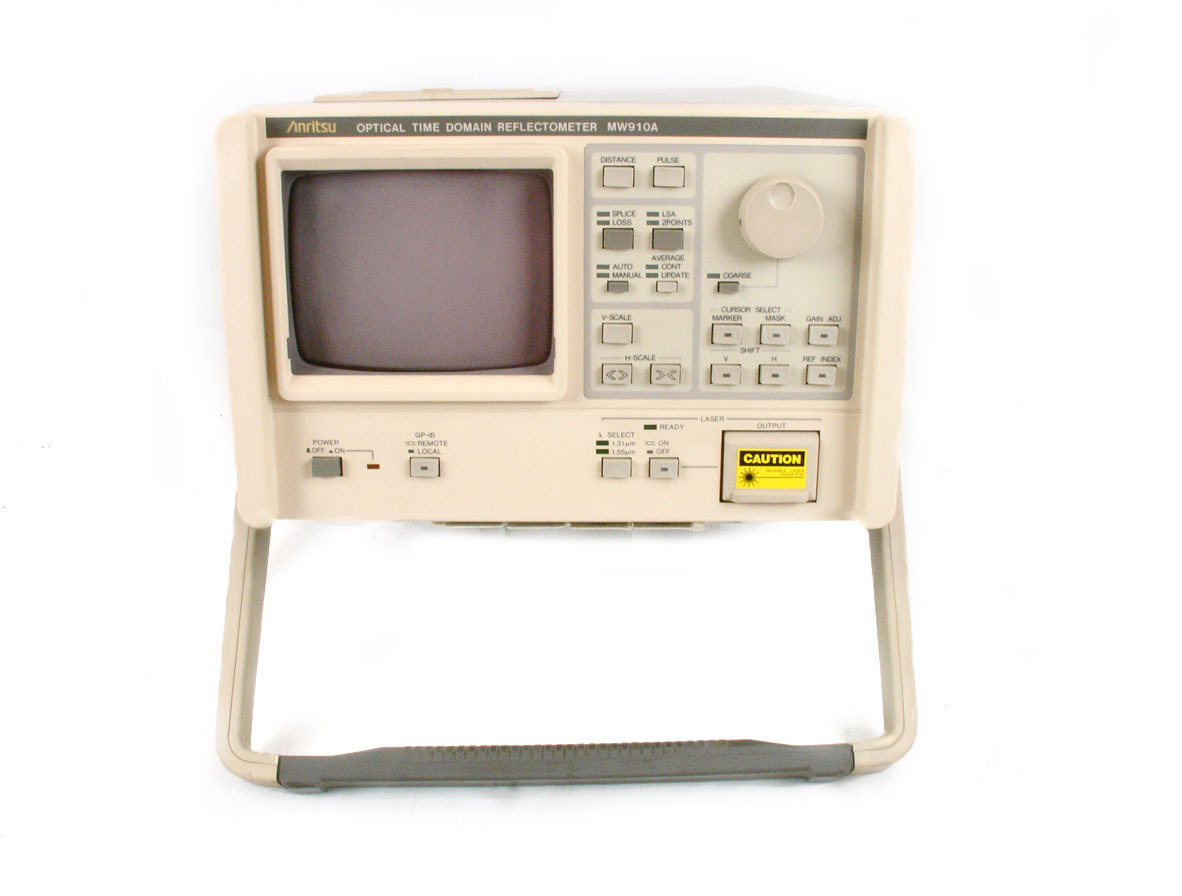

Anritsu MW910A
Optical Time Domain Reflectometer
Description
This unit is an optical time domain reflectometer with all the features of a full sized instrument in a surprisingly compact and portable package.
It is light weight, only 13.7kg but nothing has been sacrificed in performance.
The maximum measurement range is 144km, with a readout resolution down to 1 m.
The wide dynamic range permits measurement of various types of losses, and the measured results are displayed digitally.
This unit has a pushbutton switching between 1310nm and 1550nm in the MH955 series plug-in units.
It also offers three point optical masking, a built in printer, an option that allows operation with an external DC power supply, and many more features.
It is an instrument that boasts a wide application range in fiber optics from research and development to manufacture, maintenance and service.
Key Points
Small, Lightweight
Long-distance measurement with 1-meter resolution
Switchable between 1310nm and 1550nm
Temperature-controlled laser diode light source
Three-point optical masking
Easy operation
Memory for measurement setup
Built-in thermal printer
Built-in LED light source
External DC operation
Specifications
Form Factor: Mainframe
Maximum Distance Range: 144km
Minimum Distance Resolution: 1m
Maximum Distance Resolution: 160m
Connector type (main signal): FC
