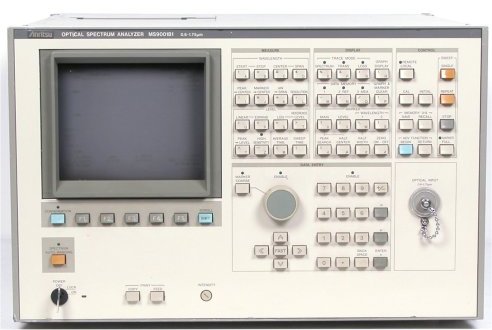

Anritsu MS9001B

Optical Spectrum Analyzer

Note: Federal Resellers: We Do Not Sell New Equipment
Anritsu MS9001B -
  • 90 Day Warranty Included
  • 12 Month Warranty Available
  • Save 80% - 90% from New
  • Calibration Available
  • Questions? Call 888-505-8378

Description

This Analyzer is best for optical communication wavelengths.

This unit covers wavelengths up to 1.75um and can be used to measure 1.55um band light emitting elements developed for long distance optical communications as well as the loss characteristics of optical parts and materials using white light sources.

Key Points

Analysis Functions

GPIB Remote Interface

Optical Interface of FC

Specifications

Wavelength Range: 600 to 1750nm

Input Power Range: -70 to +10dBm

Power Accuracy: ±2dB

Linearity: ±0.5dB/20dB, ±1dB/60dB
