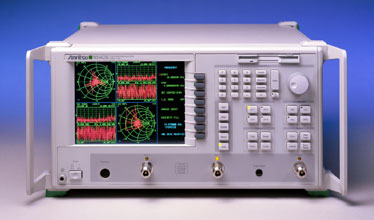

Anritsu MS4623C

RF Vector Network System Frequency 10MHz to 6GHz Output +7 to -8

Please help us customize your browsing experience, by selecting one the below.
Anritsu MS4623C -

Description

This Analyzer is an instrument which measures the complex transmission and reflection characteristics of two port devices in the frequency domain.

It does this by sampling the incident signal, separating the transmitted and reflected waves, and then performing ratios that are directly related to the reflection and transmission coefficients of the two port.

Frequency is swept to rapidly obtain amplitude and phase information over a band of frequencies of interest.

This unit utilize synthesized frequency sources to provide a known test stimulus that can sweep across a range of frequencies or power levels.

Key Points

True Performance of All Your Passive and Active Components

Optimized for your Manufacturing Process

2 & 4 Port Auto Cal Modules Which Simplify Calibrations

Sequences For Automating Repetitive Keystrokes

Enhanced Markers Simplify Data Collection

External SCSI Interface For Massive Storage Measurement Speeds of 150msec/point and Dynamic Range of 125dB

Specifications

Frequency Range: 10MHz to 6GHz

Output Power Range: +7 to -85dBm

Input Noise Level: -115dBm
