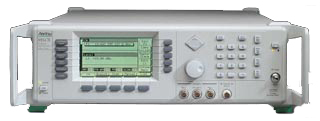

Anritsu 68369B
Synthesized Sweep/Signal Generator RF Signal Source
Description
This synthesized signal generator is a microprocessor based, synthesized signal sources with high resolution phase lock capability.
It generates both discrete CW frequencies and broad (full range) and narrow band sweeps across the frequency range of 10MHz to 60GHz.
All functions of this signal generator is fully controllable locally from the front panel or remotely (except for power on/standby) via the IEEE-488 General Purpose Interface Bus (GPIB).
Key Points
Perfect as a Local Oscillator, for Component Analysis or in A.T.E.
Ultra-low SSB Phase Noise; -100dBc at 10KHz offset from 10GHz
10MHz to 40GHz Frequency Coverage in a Single Coaxial Output
Analog, Step and Manual Sweep Capability
-125dBm to +17dBm Output Power Range
User Level Flatness Correction
Internal AM, FM, Phase and Pulse Modulation
7 Modulating Waveforms
User Downloadable Complex Modulation
10 Setup Non-Volatile Storage
Master/Slave Operation with Additional Generator
Specifications
Form Factor: Benchtop
Frequency Range: 0.01GHz to 40GHz
Frequency Resolution: 1KHz
Frequency Switching Time: 40ms
Time base stability: 0.00000002 /day
Output Power: -15dBm to 13dBm
Power Resolution: 0.01dB
Output Accuracy: 2dB
Output Level Switching Time: 20ms
Output Impedance: 50ohms
