Agilent / HP / Keysight N5742A

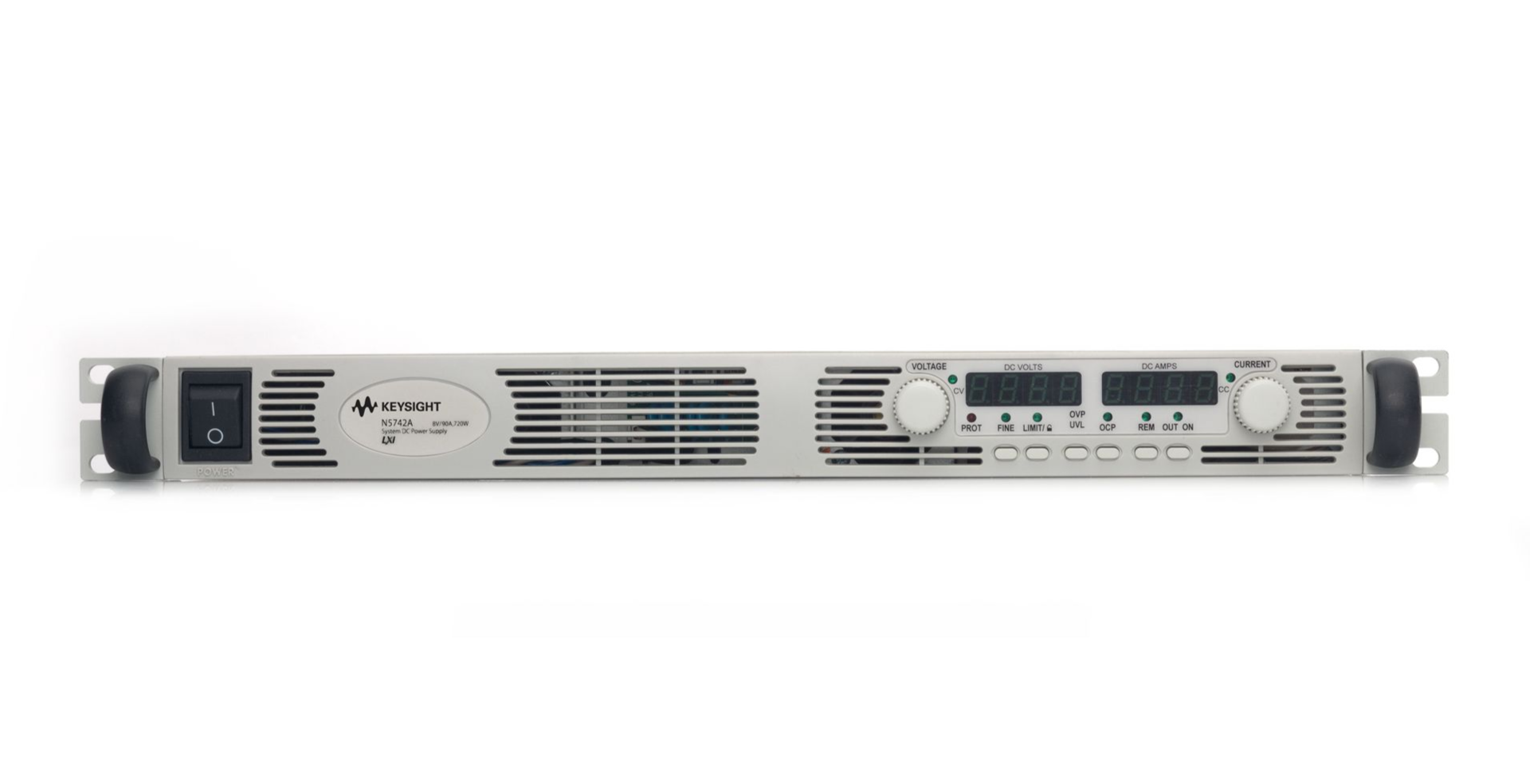

N5742A DC System Power Supply, 8 V, 90 A, 720 W

Please help us customize your browsing experience, by selecting one the below.

Description

This Power Supply is an affordable single output programmable DC power supply provides stable output power and built in voltage and current measurement. Its small 1U high size saves valuable rack space. For greater flexibility GPIB, LAN and USB 2.0 interface are provide standard allowing you to access the instruments via your choice of interface.

Key Points

GPIB, LAN, USB, LXI

Outputs can be connected in parallel and in series

Over voltage, over current and over temperature protection

Analog programming and monitoring

GPIB, LAN, USB 2.0 interfaces

85 265Vac Universal AC input

IVI COM drivers

Standard Commands for Programmable Instruments (SCPI)

Specifications

Output Voltage: 8V

Output Current: 90A

Output Power: 720W

Width: 422.8mm(16.64 inch)

Height: 43.6mm(1.71 inch)

Length: 432.8mm(17.03 inch)

Weight: 7kg(15.43lb)
