Agilent / HP / Keysight MSO8104A

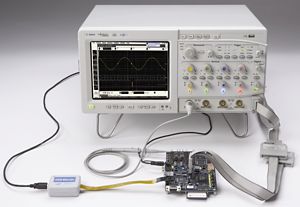

MSO8104A Infiniium Mixed Signal Oscilloscope: 1 GHz, 4 scope and 16 digital channels

Note: Federal Resellers: We Do Not Sell New Equipment
  • 90 Day Warranty Included
  • 12 Month Warranty Available
  • Save 80% - 90% from New
  • Calibration Available
  • Questions? Call 888-505-8378

Description

Gain superior insight into analog, digital, or serial design challenges. The Infiniium MS- Windows®-based MSO8104A provides unmatched acquisition performance with up to 128 Mpts of deep memory mapped to a high-definition display, powered by MegaZoom III technology.

Key Points

1GHz Bandwidth - 4 scope channels - 16 digital channels - 4GSa/s sample rate:
8 Mpts standard memory depth with options to 128 Mpts

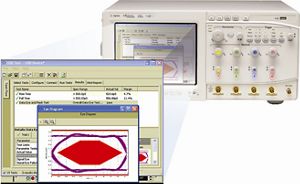

Extensive selection of software applications

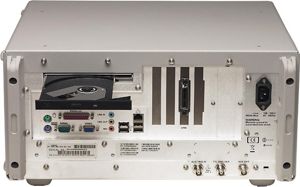

Connectivity: LAN, USB, GPIB, LXI class C compliant and XGA video

Analog Signal Viewing:
XGA color display with 256 levels of intensity
Windows based touch screen with drag and drop measurements
Vector Signal Analysis Option

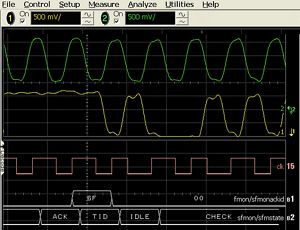

Digital Signal Triggering and Analysis with mixed signal oscilloscope (MSO) models:
16 digital channels, time correlated with 4 scope channels
Pattern and mixed signal triggering across all analog and digital channels
Only integrated FPGA Dynamic Probe Application Options
Analog chart of digital bus activity

Serial Decode:
I2C and SPI decode option
CAN serial decode option

Specifications

Vertical: scope channels:
Input channels:4 analog + 16 digital
Analog bandwidth @ 50 ohm (–3 dB):1 GHz
Calculated rise time @ 50 ohm:350 ps
Input impedance: 1 Mohm ± 1% (13 pF typical), 50 ohm ± 1.5%
Sensitivity:1 mV/div to 5 V/div (1 Mohm),1 mV/div to 1 V/div (50 ohm)
Input coupling:1 Mohm: AC, DC; 50 ohm:DC
Hardware bandwidth limit:20 MHz
Vertical resolution: 8 bits, >=12 bits with averaging
Dynamic range:± 8 div from center screen (1 Mohm), ± 12 div from center screen (50 ohm)

Vertical: digital channels:
Number of channels:16 Digital – labeled D15 – D0
Threshold selections:TTL, 5.0V CMOS, 3.3V CMOS, 2.5V CMOS, ECL, PECL, user defined
User-defined threshold range:±8.00 V in 10 mV increments
Maximum input voltage:±40 V peak CAT I
Threshold accuracy:±(100 mV + 3% of threshold setting)
Input dynamic range:±10 V about threshold
Minimum input voltage swing:500 mV peak-to-peak
Input impedance:100 kohm ± 2% (~ 8 pF) at probe tip
Channel-to-channel skew:2 ns typical, 3 ns maximum
Glitch detect:>= 2.5 ns
Resolution:1 bit

Horizontal:
Main time base range:200 ps/div to 20 s/div
Horizontal position range:0 to ± 200 s
Delayed sweep range:1 ps/div to current main time base setting
Resolution:4 ps
Timebase accuracy:15 ppm (±0.0015%)

General characteristics:
Power:100-240 VAC, ± 10%, Cat II, 47 to 440 Hz; Max power dissipated: 390 W
Weight Net: 13.4 kg (29.5 lbs.)
Dimensions (excluding handle):Height: 216 mm (8.5 in); width: 437 mm (17.19 in); depth: 440 mm (17.34 in)
Temperature:
Operating:0°C to + 50°C
Non-operating:–40°C to + 70°C
