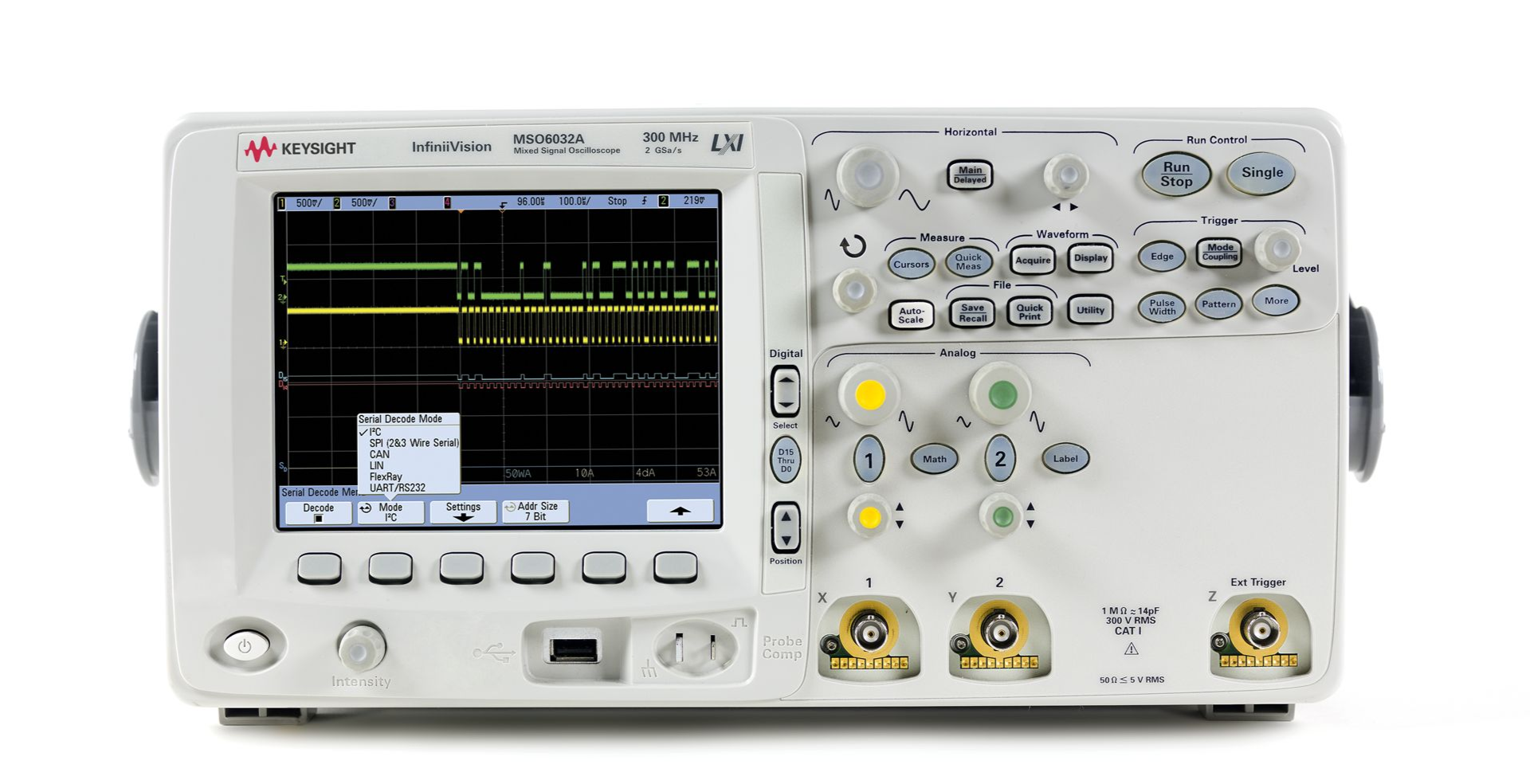

MSO6032A Mixed Signal Oscilloscope: 300 MHz, 2 Analog Plus 16 Digital Channels
Description
Gain superior insight into analog, digital, or serial design challenges. The MSO6032A oscilloscope offers MegaZoom III deep memory, the highest definition color display with 256 levels of intensity and the fastest uncompromised update rate of 100,000 waveforms/sec of any scopes in its class.
Key Points
Lab scope performance at a portable scope price:
300 MHz Bandwidth
2 analog channels + 16 time-correlated digital channels
2 GSa/s sample rate
Standard 8 Mpts MegaZoom III deep memory
The Fastest Way to Debug your design:
Fastest update rate in the industry at 100,000 waveforms/sec
Digital debug for FPGAs
Specifications
Acquisition: scope channels(2 ch):
Sample rate:2 GSa/sec each channel
Memory depth:2 channels/4 channels, 8 Mpts/4 Mpts
Vertical resolution:8 bits
Peak detection:500-ps peak detect
Acquisition: digital channels (MSO6000A or MSO-upgraded DSO6000A only)(16 ch):
Sample rate:2 GSa/sec one pod*, 1 GSa/sec each pod
Maximum input frequency:250 MHz
Vertical resolution:1 bit
Glitch detection:2 ns (min pulse width)
Memory depth:
One pod/both pods (with scope channels turned off):8 Mpts/4 Mpts
One pod/both pods (with scope channels turned on):2.5 Mpts/ 1.25 Mpts
Vertical system: scope channels:
Scope channels:Ch 1 and 2 simultaneous acquisition
Bandwidth (–3dB):DC to 300 MHz
AC coupled:3.5 Hz to 300 MHz
Range:2 mV/div to 5 V/div (1 Mohm or 50 ohm)
Dynamic range:±8 div
Coupling:AC, DC
Power requirements:
Line voltage range:100-120 V, 50/60/400 Hz; 100-240V, 50/60 Hz auto ranging
Line frequency:50/60 Hz, 100-240 VAC; 400 Hz, 100-120 VAC
Power usage:120 W max
#Environmental characteristics:
Ambient temperature Operating:-10 °C to +55 °C; non-operating –40 °C to +70 °C
Humidity Operating:95% RH at 40 °C for 24 hr; non-operating 90% RH at 65 °C for 24 hr
Altitude:Operating to 4,570 m (15,000 ft); non-operating to 15,244 m (50,000 ft)
Vibration:Agilent class B1 and MIL-PRF-28800F; class 3 random
