Agilent / HP / Keysight R8486A

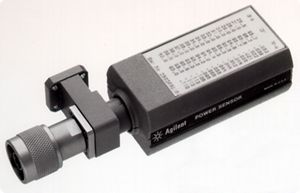

R8486A Thermocouple Waveguide Power Sensor
This Power Sensor is designed for use with the Agilent 435B, 436A, 437B, 438A, 70100A, and E1416A power meters and provides extraordinary accuracy and stability.
This unit gives you extremely low SWR even at mm wave frequencies, and is traceable to the U.S. National Institute of Standards and Technology (NIST).
A 50MHz calibration port is included with the power sensor for calibration with the power meter.
This calibration provides traceability to NIST at millimeter wave frequencies, and it eliminates the uncertainties due to temperature changes and the variance in making measurements with different meter/sensor combinations.
Excellent SWR for reducing mismatch uncertainty
Accurate calibration and traceability
Compatible with EPM, EPM-P and P-series power meters
Accurate average power measurements over -30 to +20dBm
Thermocouple power sensing element
Calibration port: 50MHz
Frequency range: 26.5GHz to 40GHz
Maximum SWR: 1.4
Power Linearity: +10 to +20dBm; +2, -4%
Maximum Power: 300mW average, 15W peak, 30Wµs per pulse
