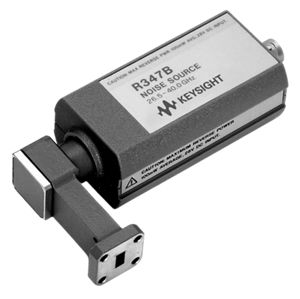

Agilent / HP / Keysight R347B

R347B Millimeter-Wave Noise Source, R-band, 26.5 to 40 GHz

Please help us customize your browsing experience, by selecting one the below.

Description

This Noise Source allows you to make accurate and convenient noise figure measurements on millimeter wave devices.

This unit provides highly precise broadband noise at the input of the system or component under test.

The noise figure meter then processes the ON/OFF ratio of noise power present in the system IF, and provides an accurate reading of noise figure and gain.

It has remarkable ENR stability over time, which allows longer recalibration cycles and more accurate noise figure measurements.

Key Points

Performance and reliability at millimeter-wave frequencies

Excellent ENR stability over time

Low SWR

Max reverse Power of 100mW

<

p>Switching speed of <10us

Specifications

Max Reverse Power: 100mW

<

p>Switching speed: <10us

Frequency Range: 26.5GHz to 40GHz

Form Factor: Benchtop

Type: Noise Source

Excess Noise Ratio: 10dB to 13dB
