Agilent / HP / Keysight Q8486A

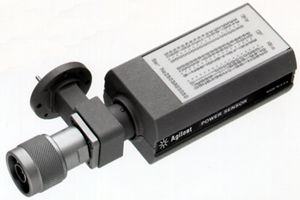

Q8486A Thermocouple Waveguide Power Sensor
Description
This unit is designed for use with the EPM series, EPM-P series, 70100A, E1416A and the discontinued 43x power meters, and provides excellent accuracy and stability.
A 50MHz calibration port is included with the power sensor for calibration which is traceable to the U.S. National Institute of Standards and Technology (NIST).
This calibration eliminates the uncertainties due to temperature changes and the variance in making measurements with different meter/sensor combinations.
Key Points
Excellent SWR for reducing mismatch uncertainty
50MHz calibration port
Accurate calibration and traceability to NIST millimeter-wave sensor
calibration
Compatible with EPM, EPM-P and P-series power meters, plus the E1416A
VXI and discontinued 70100A and 43X power meter
Accurate average power measurements over -30 to +20dBm
Frequency range 33GHz to 50GHz
Thermocouple power sensing element
Specifications
Frequency Range: 33GHz - 50GHz
Min/Max Power: 10dBm - 20dBm
Type: handheld
