Agilent / HP / Keysight N6745B

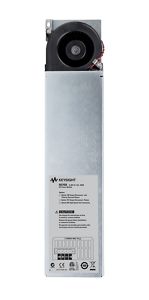

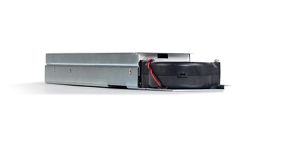

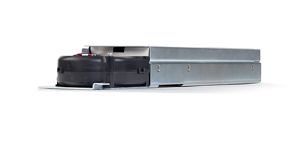

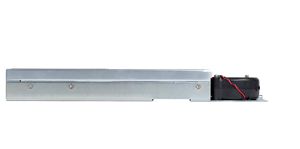

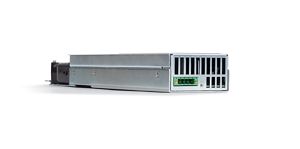

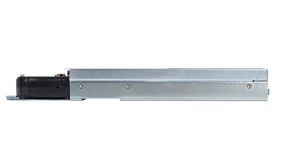

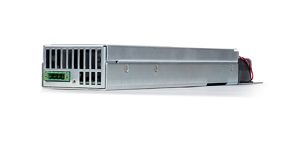

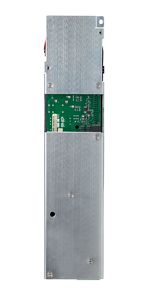

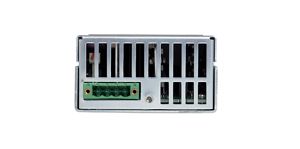

N6745B DC Power Module, 60 V, 1.6 A, 100 W
Description
Agilent high performance DC power supplies offer speed and accuracy for test optimization.
The single low-profile modular power system, 50-300 W, GPIB, LAN, USB, LXI Class C N6700B series provides small size up to 4 outputs in 1U of rack space; 20 DC power modules, basic, performance and precision models; as well as fast output programming with active down programming.
The Agilent 100W, N6745B is a basic DC power module that provides programmable voltage and current, measurement and protection features at a very economical price, making these modules suitable to power the DUT or to provide power for ATE system resources such as fixture control.
Key Points
Over-voltage, Over-current, Over-temperature protection
Outputs can be connected in series or parallel
Standard Commands for Programmable Instruments (SCPI)
VXI plug'n'play drivers and IVI COM drivers
Optional built in output disconnect relays
Specifications
Output Ratings
Voltage: 60 V
Current (derated 1% per °C above 40°C): 1.6 A
Power:100 W
Programming Accuracy (at 23°C ±5°C after 30 minute warm-up. Applies from min. to max. program)
Voltage: 0.1% + 60 mV
Current: 0.15% + 20 mA
Ripple & Noise from 20 Hz to 20 MHz
CV peak-to-peak: 25 mV
CV rms: 9 mV
(PARD) CC rms: 2 mA
Load Effect (Regulation) (for any output load change, with a maximum load-lead drop of 1 V per lead)
Voltage: 13 mV / 16 mV
Current: 2 mA
