Agilent / HP / Keysight N6743B

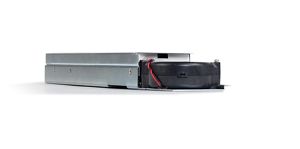

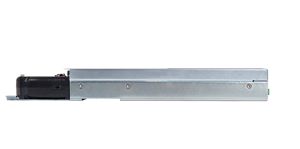

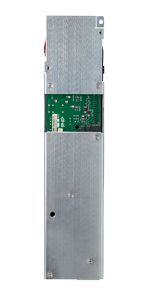

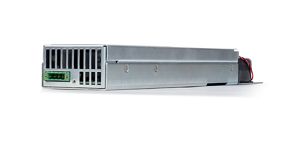

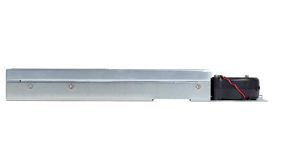

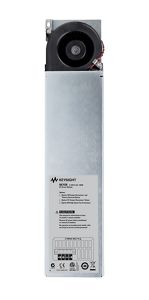

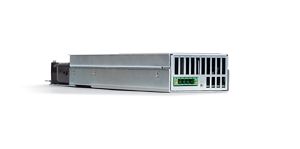

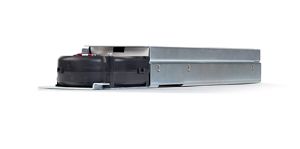

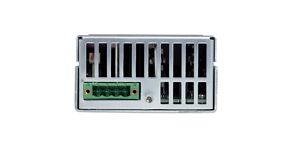

N6743B DC Power Module, 20V, 5A, 100W

Note: Federal Resellers: We Do Not Sell New Equipment
  • 90 Day Warranty Included
  • 12 Month Warranty Available
  • Save 80% - 90% from New
  • Calibration Available
  • Questions? Call 888-505-8378

Description

Agilent high performance DC power supplies offer speed and accuracy for test optimization. The single low-profile modular power system, 50-300 W, GPIB, LAN, USB, LXI Class C N6700B series provides small size up to 4 outputs in 1U of rack space; 20 DC power modules, basic, performance and precision models; as well as fast output programming with active down programming. The Agilent 100W, N6743B is a basic DC power module that provides programmable voltage and current, measurement and protection features at a very economical price, making these modules suitable to power the DUT or to provide power for ATE system resources such as fixture control.

Key Points

Ideal for ATE systems in R&D, Design Validation, and Manufacturing

Small size: up to 4 outputs in 1U of rack space

Flexible, modular system: Can mix and match power levels and performance levels to optimize investment

Performance modules for critical test requirements

Value modules for basic DC power requirements

Fast command processing times to improve throughput

Connect via GPIB, LAN, or USB

Fully compliant to LXI Class C specification

Specifications

Output Ratings

Voltage: 20 V
Current (derated 1% per °C above 40°C): 5 A
Power: 100 W

Programming Accuracy (at 23°C ±5°C after 30 minute warm-up. Applies from min. to max. program)

Voltage: 0.1% + 20 mV
Current: 0.15% + 20 mA

Ripple & Noise from 20 Hz to 20 MHz

CV peak-to-peak: 14 mV
CV rms: 3 mV
(PARD) CC rms: 2 mA

Load Effect (Regulation) (for any output load change, with a maximum load-lead drop of 1 V per lead)

Voltage: 9 mV
Current: 2 mA
