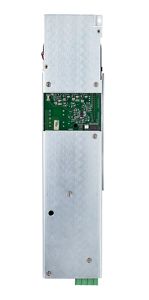

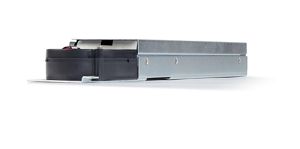

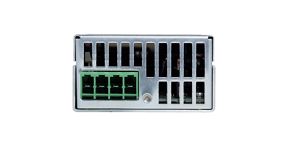

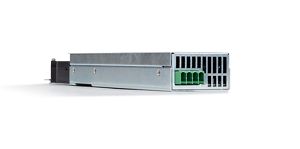

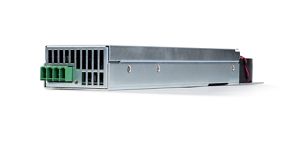

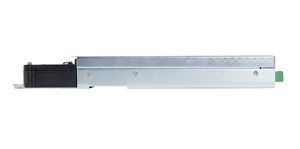

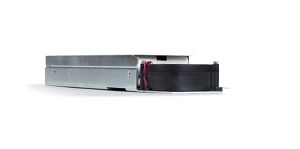

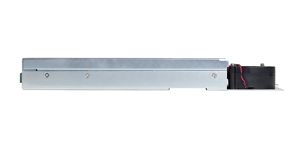

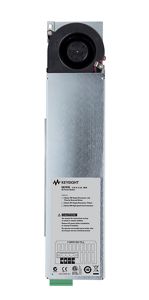

N6742B DC Power Module, 8V, 12.5A, 100W
Description
Agilent high performance DC power supplies offer speed and accuracy for test optimization.
The single low-profile modular power system, 50-300 W, GPIB, LAN, USB, LXI Class C N6700B series provides small size up to 4 outputs in 1U of rack space; 20 DC power modules, basic, performance and precision models; as well as fast output programming with active down programming.
The Agilent 100W, N6742B is a basic DC power module that provides programmable voltage and current, measurement and protection features at a very economical price, making these modules suitable to power the DUT or to provide power for ATE system resources such as fixture control.
Key Points
Up to four 50W or 100W power modules in the required N6700B mainframe
Mix and match between high performance output or basic DC power modules
Stable, reliable DC output to 100V and 20A
<
p>Fast command processing: <1ms
Small size: 1U of rack space
Connect via built-in GPIB, LAN, or USB
Specifications
Output Ratings
Voltage: 8 V
Current (derated 1% per °C above 40°C): 12.5 A
Power: 100 W
Programming Accuracy (at 23°C ±5°C after 30 minute warm-up. Applies from min. to max. program)
Voltage: 0.1% + 19 mV
Current: 0.15% + 20 mA
Ripple & Noise from 20 Hz to 20 MHz
CV peak-to-peak: 12 mV
CV rms: 2 mV
(PARD) CC rms: 4 mA
Load Effect (Regulation) (for any output load change, with a maximum load-lead drop of 1 V per lead)
Voltage: 6 mV
Current: 2 mA
